Reconstruction of the
2020 Dorset formation |
|

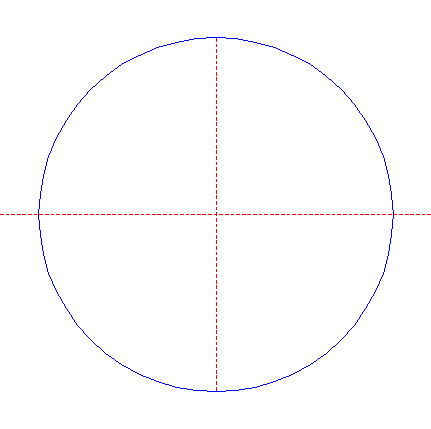

1. |
| Draw a circle. Draw and extend the horizontal and vertical centerlines.
|
|

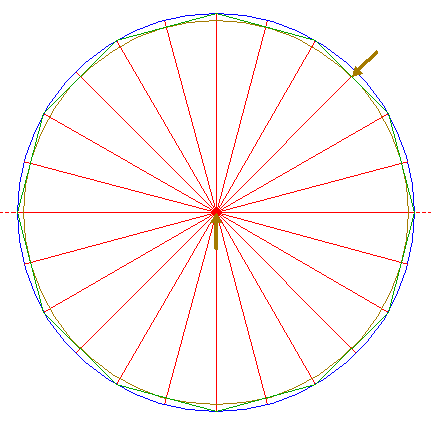

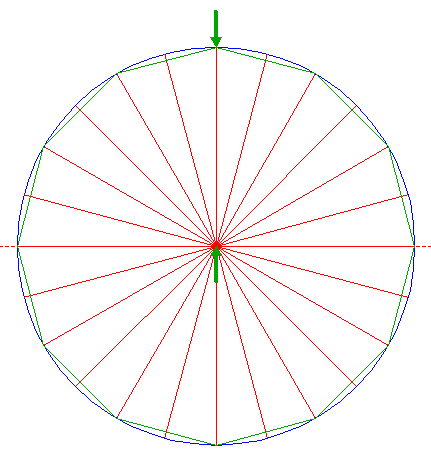

2. |

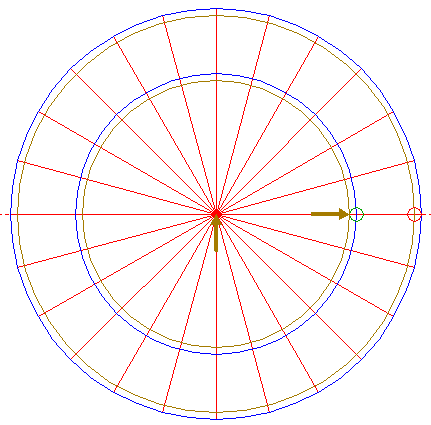

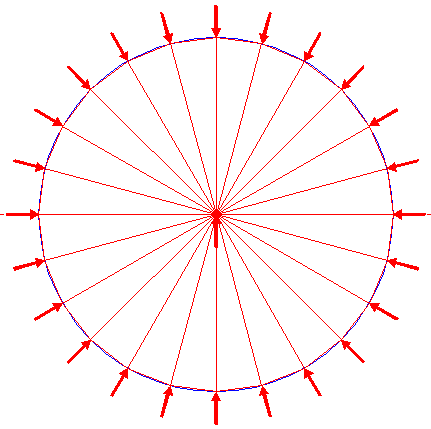

| Construct the inscribed regular 24-sided polygon of circle 1, pointing up. Draw the 24 rays of this polygon, from the center to its angular points.
|
|
3. |

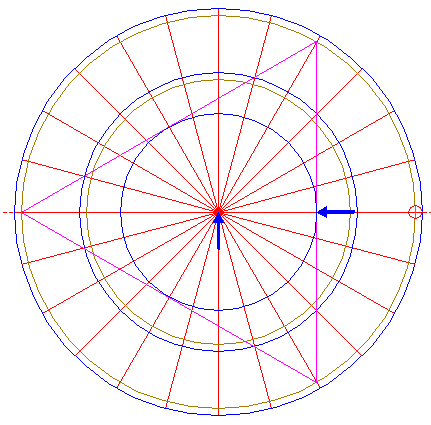

| Construct the inscribed dodecagon (regular 12-sided polygon) of circle 1, pointing up.
|
|
4. |
| Construct the inscribed circle of dodecagon 3.
|
|

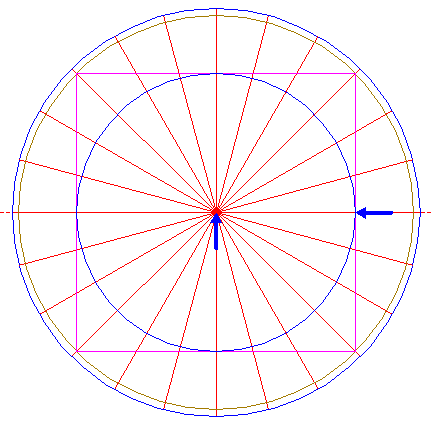

5. |
| Construct the inscribed square of circle 4, with horizontal and vertical sides.
|
|
6. |
| Construct the inscribed circle of square 5.
|
|

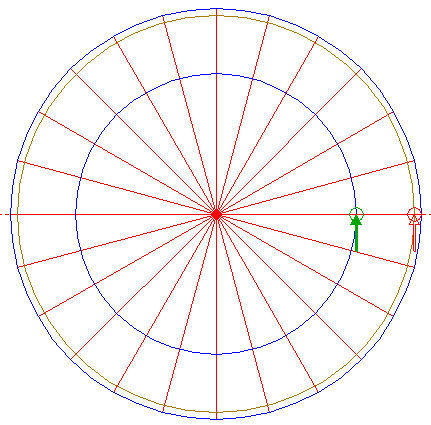

7. |

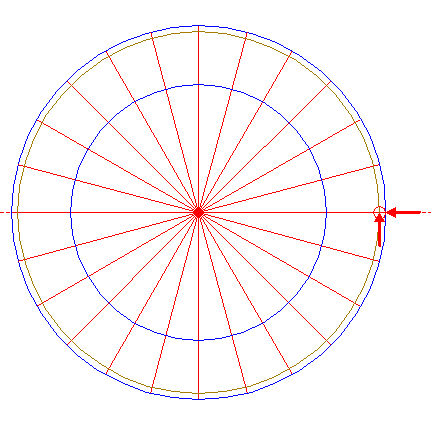

| Construct a circle centered at the righthand intersection of circle 4 and the horizontal centerline, tangent to circle 1 at the righthand side.
|
|
8. |
| Copy circle 7 to the righthand intersection of circle 6 and the horizontal centerline.
|
|
9. |
| Construct a circle concentric to circle 1, tangent to circle 8 at the lefthand side.
|
|

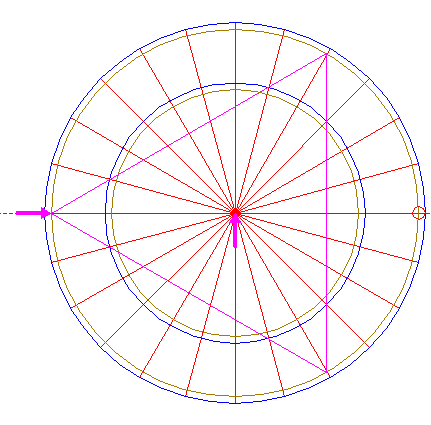

10. |
| Construct the inscribed equilateral triangle of circle 4, pointing to the left.
|
|
11. |
| Construct the inscribed circle of triangle 10.
|
|

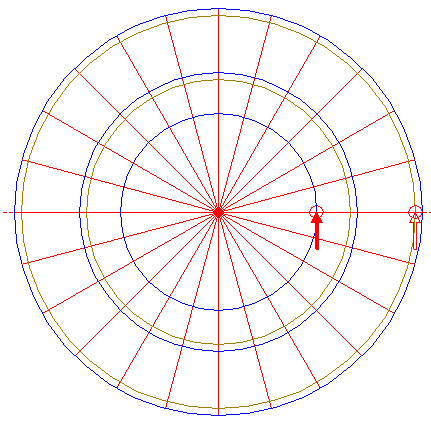

12. |

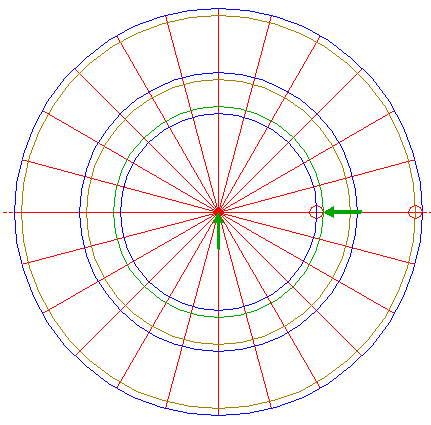

| Copy circle 7 to the righthand intersection of circle 11 and the horizontal centerline.
|
|
13. |
| Construct a circle concentric to circle 1, tangent to circle 12 at the righthand side.
|
|

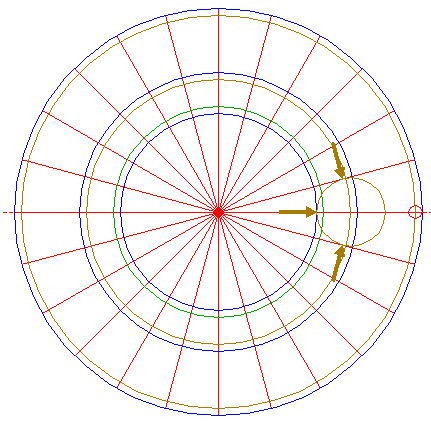

14. |
| Construct a circle tangent to the righthand rays 2 just above and below the horizontal centerline, and tangent to circle 11 at the righthand side, from outside, as shown.
|
|
15. |

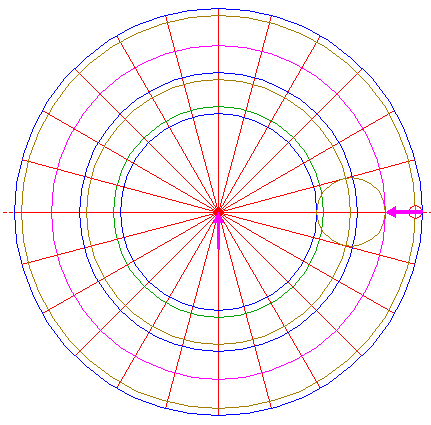

| Construct a circle concentric to circle 1, tangent to circle 14 at the righthand side.
|
|
16. |
| Copy circle 7 to the righthand intersection of circle 15 and the horizontal centerline.
|
|
17. |
| Construct a circle concentric to circle 1, tangent to circle 16 at the righthand side.
|
|
18. |

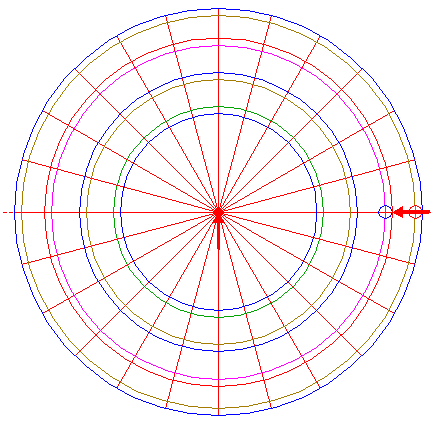

| Construct a circle centered at the righthand intersection of circle 6 and the horizontal centerline, tangent to circle 17 at the lefthand side.
|
|
19. |

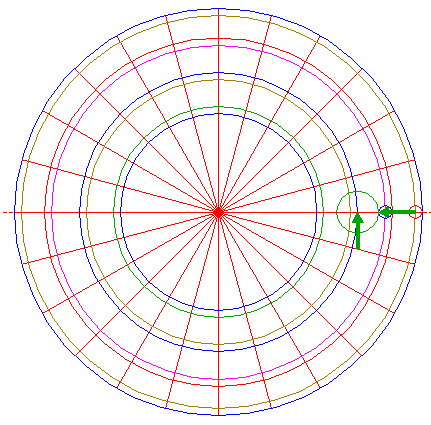

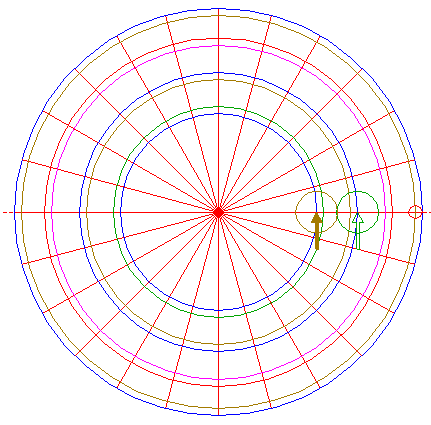

| Copy circle 18 to the righthand intersection of circle 11 and the horizontal centerline.
|
|
20. |
| Construct a circle concentric to circle 1, tangent to circle 19 at the lefthand side.
|
|
21. |

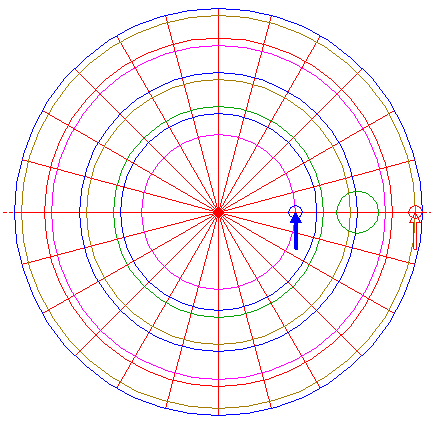

| Copy circle 7 to the righthand intersection of circle 20 and the horizontal centerline.
|
|
22. |
| Construct a circle concentric to circle 1, tangent to circle 21 at the lefthand side.
|
|
23. |

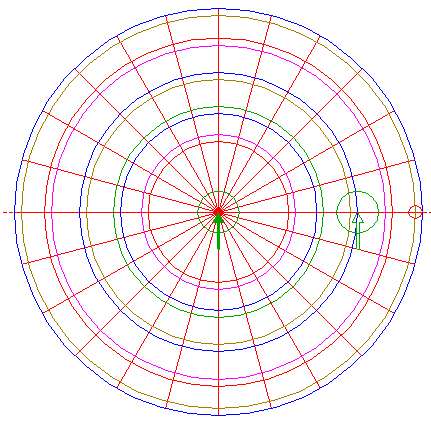

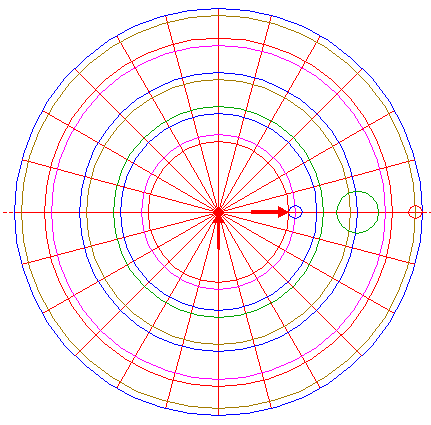

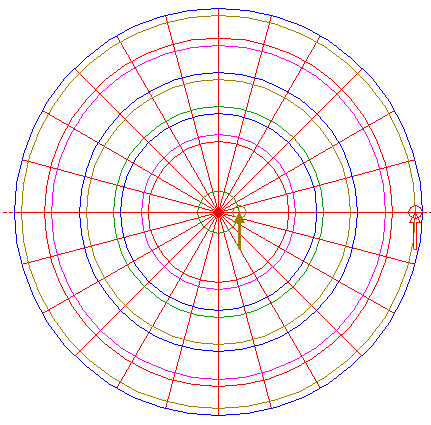

| Copy circle 18 to the center of circle 1.
|
|
24. |
| Copy circle 7 to the righthand intersection of circle 23 and the horizontal centerline.
|
|
25. |

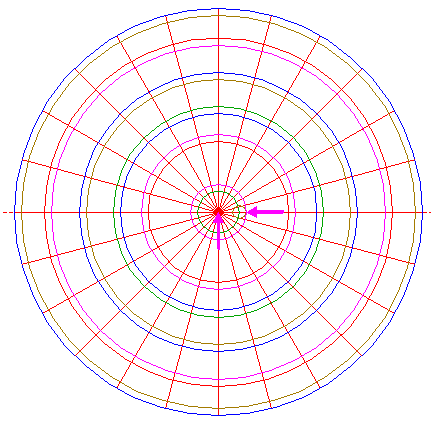

| Construct a circle concentric to circle 1, tangent to circle 24 at the righthand side.
|
|
26. |
| Construct a "two-points" circle (defined by the two end-points of a centerline) between the righthand intersections of circles 22 and 23 with the horizontal centerline.
|
|
27. |

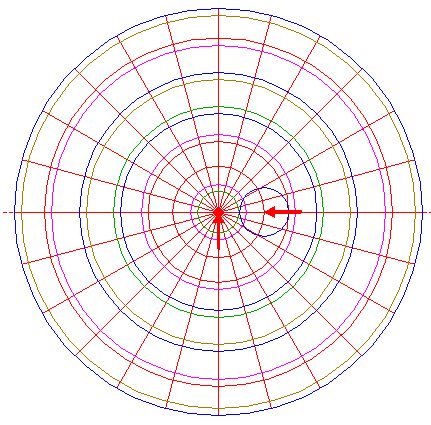

| Construct a circle concentric to circle 1, passing through the center of circle 26.
|
|
28. |

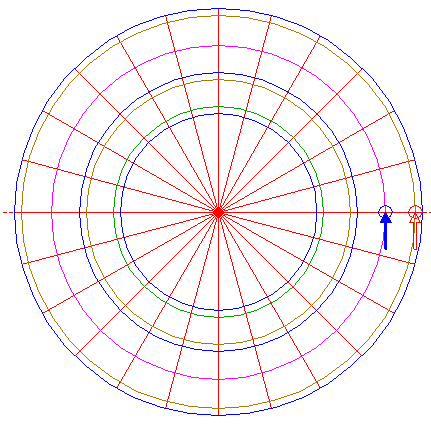

| Construct a circle centered at the righthand intersection of circle 4 and the horizontal centerline, tangent to circle 17 at the righthand side.
|
|

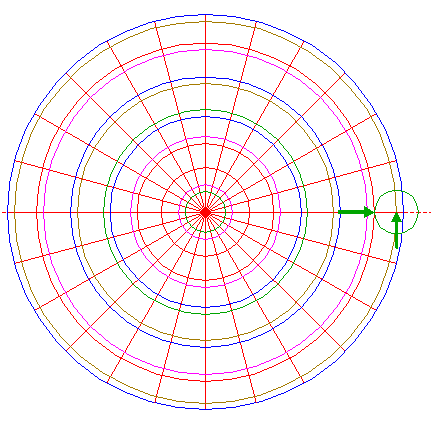

29. |

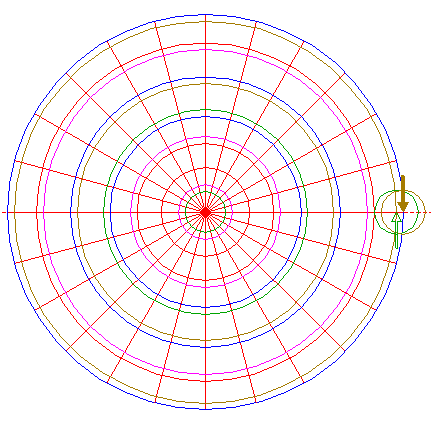

| Copy circle 28 to the righthand intersection of circle 1 and the horizontal centerline.
|
|

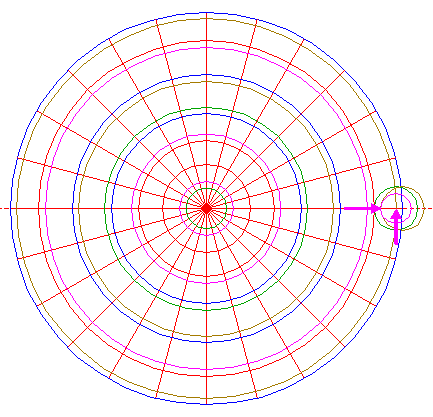

30. |
| Construct a circle concentric to circle 28, tangent to circle 29 at the lefthand side.
|
|

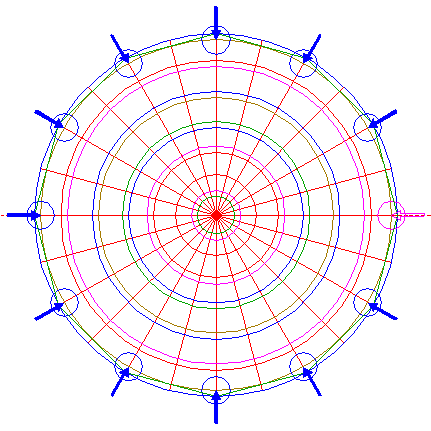

31. |
| Copy circle 30 eleven times, to the corresponding positions with respect to the other angular points of dodecagon 3, as shown.
|
|
32. |

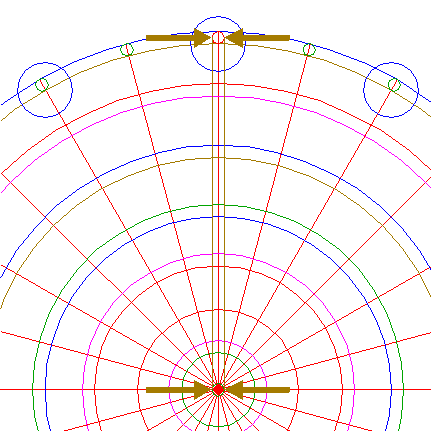

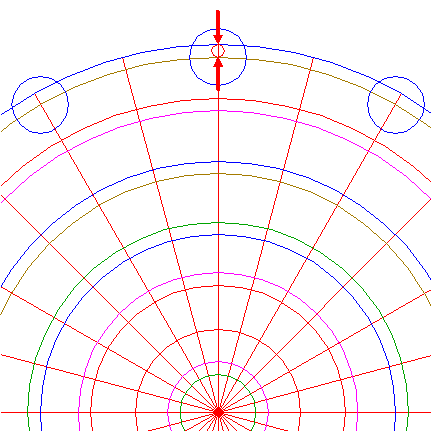

| Construct a "two-points" circle between the upper intersections of circles 1 and 4 with the vertical centerline.
|
|
33. |

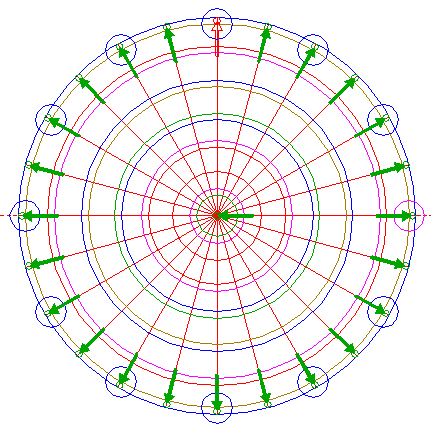

| Copy circle 32 twentyfour times, one to the center of circle 1, the others to the corresponding positions with respect to the other rays 2, as shown.
|
|
34. |

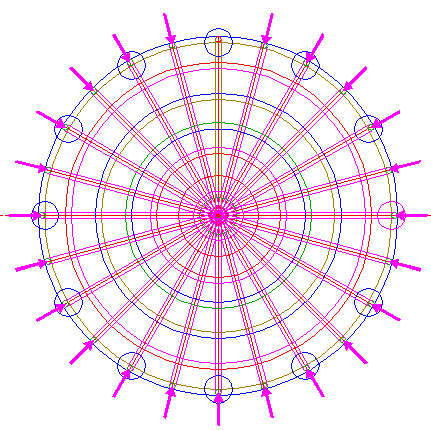

| Construct two parallel lines, tangent to circle 32 and the central circle 33 at both sides.
|
|
35. |
| Repeat step 34 twentythree times, with respect to the central and all other circles 33, as shown.
|
|
36. |

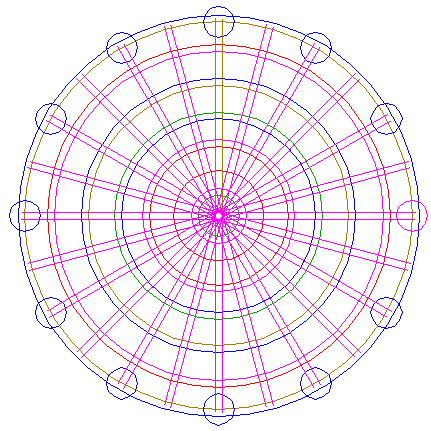

| Circles 1, 4, 6, 9, 11, 13, 15, 17, 20, 22, 23, 25, 27, 30, and 31, and lines 34, and 35, are used for the final reconstruction.
|
|
37. |

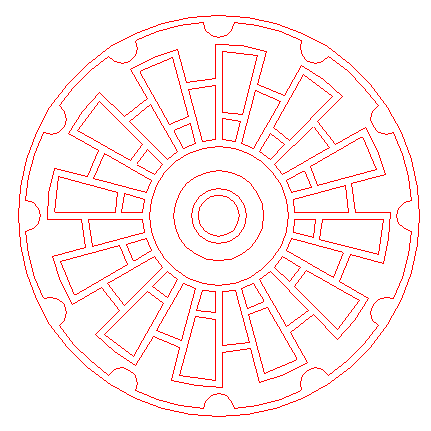

| Remove all parts not visible within the formation itself.
|
|
38. |

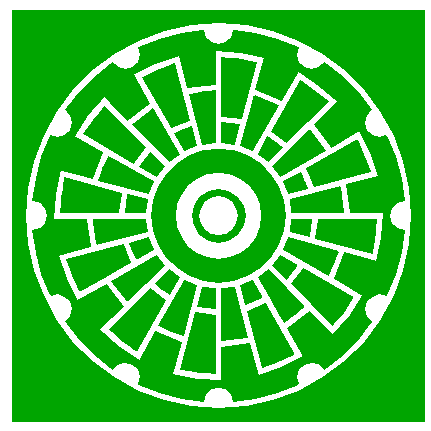

| Colour all areas corresponding to standing...
|
|
39. |
| ...or to flattened crop, and finish the reconstruction of the 2020 Dorset formation.
|
|
40. |

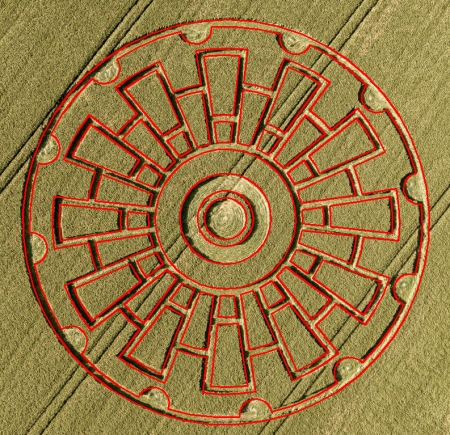

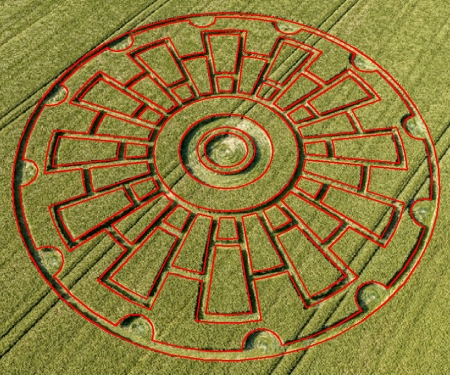

| The final result, matched with two aerial images.
|
