2021 Tidcombe Down formation
|
Reconstruction of the 2021 Tidcombe Down formation | ||
| 1. |
| Draw a circle. Draw and extend the horizontal and vertical centerlines. |

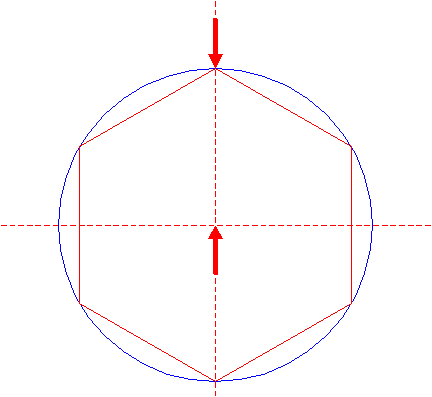

| 2. |
| Construct the inscribed hexagon (regular six-sided polygon) of circle 1, pointing up. |
| 3. |
| Construct a circle centered at the righthand intersection of circle 1 and the horizontal centerline, passing through the nearest upper angular point of hexagon 2. |
| 4. |
| Construct the inscribed pentagon (regular five-sided polygon) of circle 3, pointing to the right. |

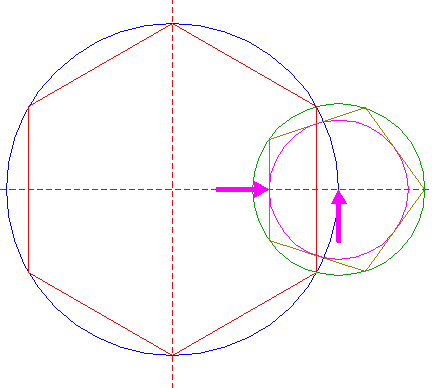

| 5. |
| Construct the inscribed circle of pentagon 4. |
| 6. |
| Copy circle 5 to the upper intersection of circles 1 and 3. |
| 7. |
| Construct a circle concentric to circle 3, tangent to circle 6 at the upper side. |
| 8. |
| Copy circle 5 to the upper intersection of circles 1 and 7. |
| 9. |
| Construct a circle centered at the lefthand intersection of circle 5 and the horizontal centerline, tangent to circle 3 at the lefthand side. |
| 10. |
| Construct a circle concentric to circle 3, tangent to circle 9 at the righthand side. |
| 11. |
| Copy circle 10 to the center of circle 1. |
| 12. |
| Copy circle 10 to the upper lefthand intersection of circles 1 and 8. |
| 13. |
| Construct a circle concentric to circle 8, tangent to circle 12 at the lefthand side. |
| 14. |
| Copy circle 10 to the upper lefthand intersection of circles 1 and 13. |
| 15. |
| Construct a circle centered at the lefthand intersection of circle 10 and the horizontal centerline, tangent to circle 5 at the lefthand side. |
| 16. |
| Construct a circle concentric to circle 3, tangent to circle 15 at the righthand side. |
| 17. |
| Copy circle 16 to the lefthand intersection of circles 1 and 14. |
| 18. |
| Construct a circle concentric to circle 14, tangent to circle 17 at the lefthand side. |
| 19. |
| Copy circle 16 to the lefthand intersection of circles 1 and 18. |
| 20. |
| Construct a circle concentric to circle 3, tangent to the righthand side of hexagon 2. |
| 21. |
| Copy circle 20 to the lower lefthand intersection of circles 1 and 19. |
| 22. |
| Construct a circle concentric to circle 19, tangent to circle 21 at the lower lefthand side. |
| 23. |
| Copy circle 20 to the lower lefthand intersection of circles 1 and 22. |
| 24. |
| Construct a circle centered at the righthand intersection of circle 5 and the horizontal centerline, tangent to the nearest upper side of pentagon 4. |
| 25. |
| Copy circle 24 to the lower intersection of circles 1 and 23. |
| 26. |
| Construct a circle concentric to circle 23, tangent to circle 25 at the lower side. |
| 27. |
| Copy circle 24 to the lower intersection of circles 1 and 26. |
| 28. |
| Copy circles 8, 14, 19, 23, and 27, while mirroring with respect to the horizontal centerline. |
| 29. |
| Construct a circle concentric to circle 1, tangent to circle 13 at the upper righthand side. |
| 30. |
| Copy circle 24 to the righthand intersection of circle 29 and the horizontal centerline. |
| 31. |
| Construct the "two-points" circle (defined by the two end-points of a centerline) between the center of circle 1 and the lefthand intersection of circle 11 and the horizontal centerline. |
| 32. |
| Construct a circle concentric to circle 31, tangent to circle 30 at the righthand side. |
| 33. |
| Circles 3, 8, 11, 14, 19, 23, 27, 28, 29, and, 32, together, make up the final reconstruction. |
| 34. |
| Colour all areas corresponding to standing... |
| 35. |
| ...or to flattened crop, and finish the reconstruction of the 2021 Tidcombe Down formation. |
| 36. |
| The final result, matched with three aerial images. |
| Copyright © 2021, Zef Damen, The Netherlands |
