2021 Woodcote Lane formation
|
Reconstruction of the 2021 Woodcote Lane formation | ||
| 1. |

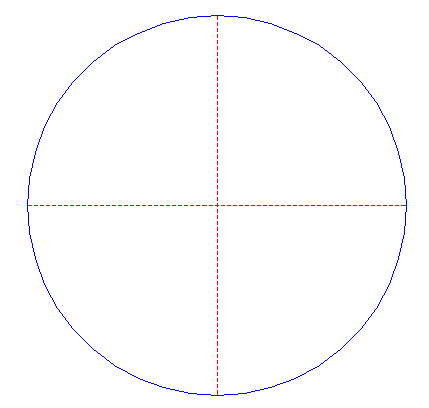

| Draw a circle. Draw the horizontal and vertical centerlines. |
| 2. |

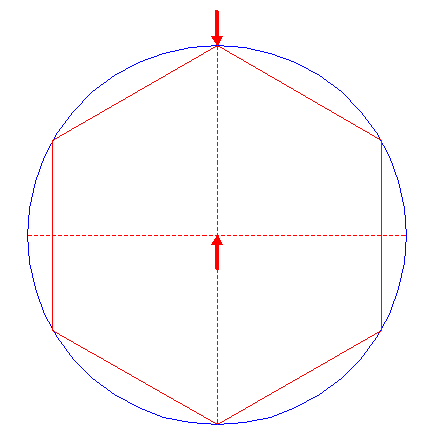

| Construct the inscribed hexagon (regular six-sided polygon) of circle 1, pointing up. |
| 3. |

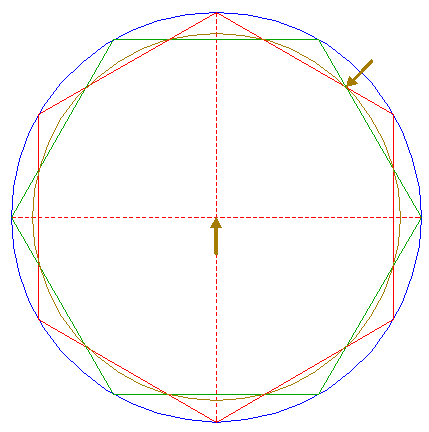

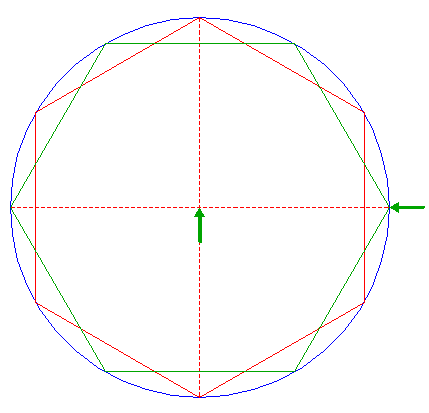

| Construct the inscribed hexagon of circle 1, pointing to the right. |
| 4. |
| Construct a circle concentric to circle 1, passing through the intersections of hexagons 2 and 3. |
| 5. |

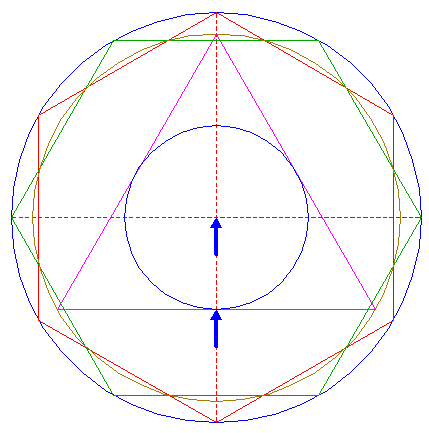

| Construct the inscribed equilateral triangle of circle 4, pointing up. |
| 6. |
| Construct the inscribed circle of triangle 5. |
| 7. |

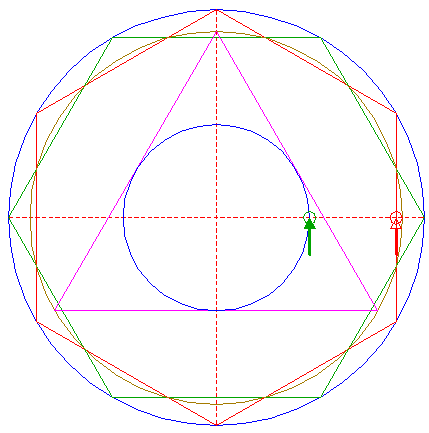

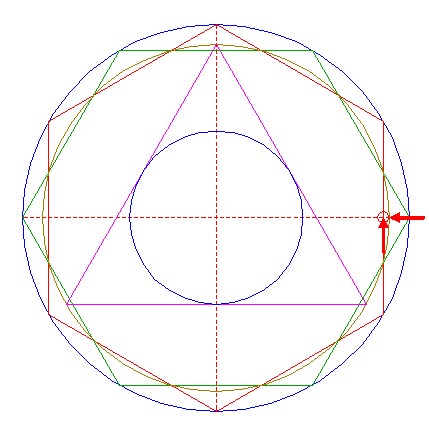

| Construct a circle centered at the righthand intersection of hexagon 2 and the horizontal centerline, tangent to circle 4 at the righthand side. |
| 8. |
| Copy circle 7 to the righthand intersection of circle 6 and the horizontal centerline. |
| 9. |
| Construct a circle concentric to circle 1, tangent to circle 8 at the righthand side. |
| 10. |

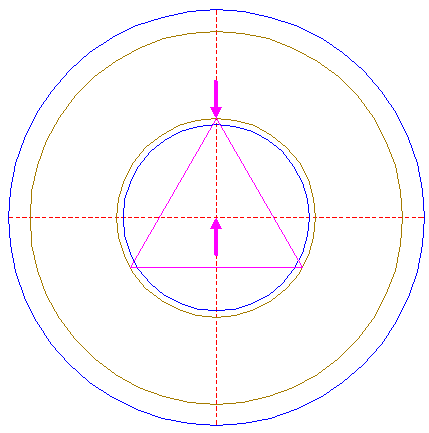

| Construct the inscribed equilateral triangle of circle 9, pointing up. |
| 11. |
| Construct a circle passing through the intersections of triangle 10 and the horizontal centerline, tangent to circle 9 at the lower side. |
| 12. |
| Construct a circle concentric to circle 1, tangent to circle 11 at the upper side. |
| 13. |
| Copy circle 11 to the center of circle 1. |

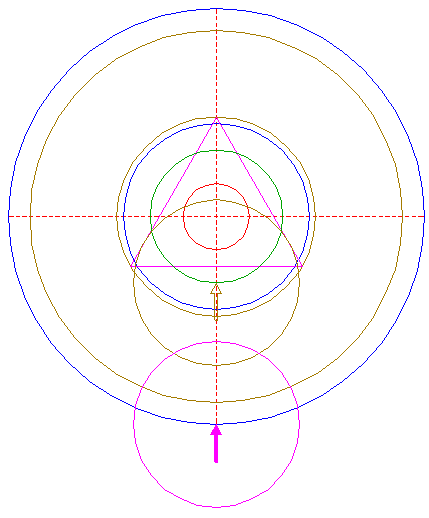

| 14. |

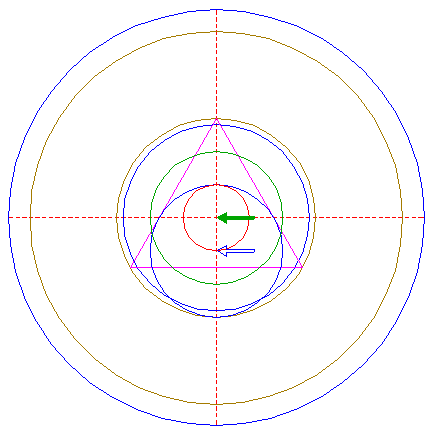

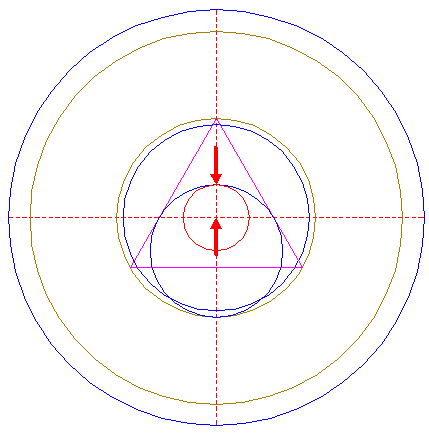

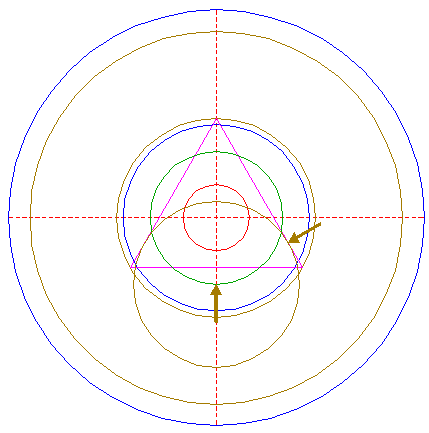

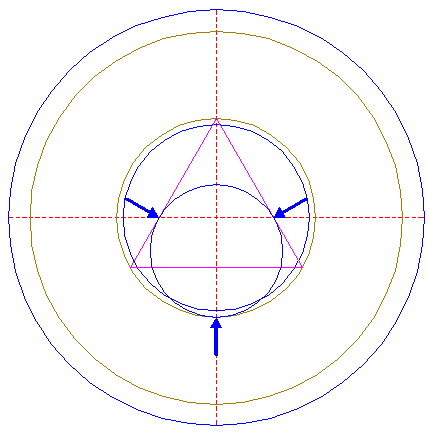

| Construct a circle centered at the lower intersection of circle 13 and the vertical centerline, tangent to the righthand side of triangle 10. |
| 15. |
| Copy circle 14 to the lower intersection of circle 1 and the vertical centerline. |
| 16. |
| Construct a circle concentric to circle 1, tangent to circle 15 at the upper side. |
| 17. |

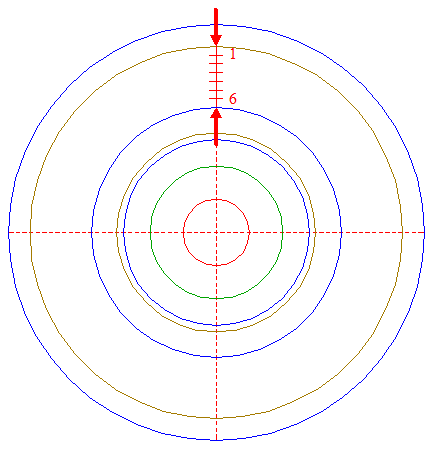

| Draw the connecting line between the upper intersections of circles 4 and 16 with the vertical centerline, and divide this line into seven equal parts. Number the nodes 1 - 6 from top to bottom. |
| 18. |

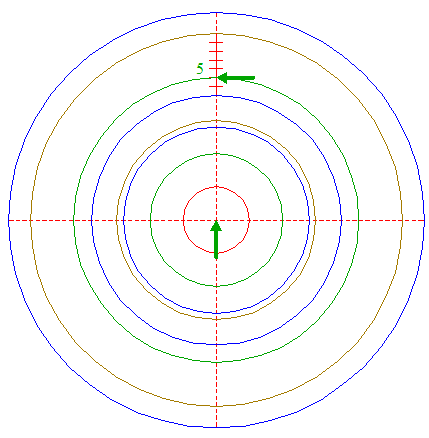

| Construct a circle concentric to circle 1, passing through node 17 nr. 5. |
| 19. |

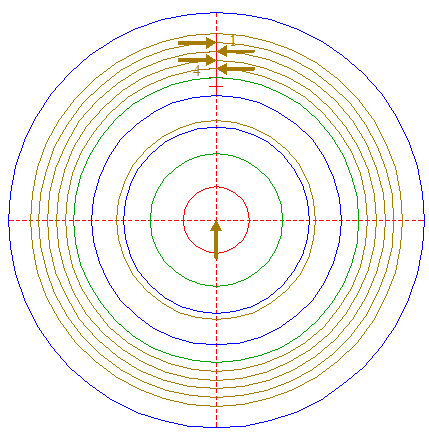

| Construct four circles concentric to circle 1, passing through nodes 17 nrs. 1 - 4. |

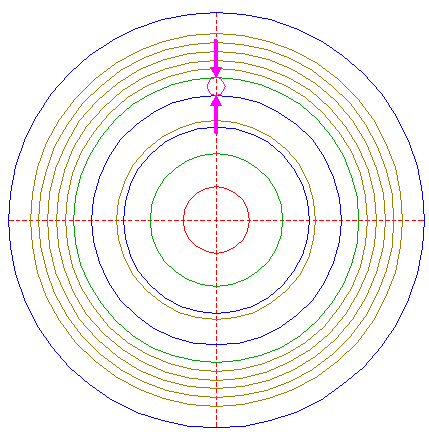

| 20. |

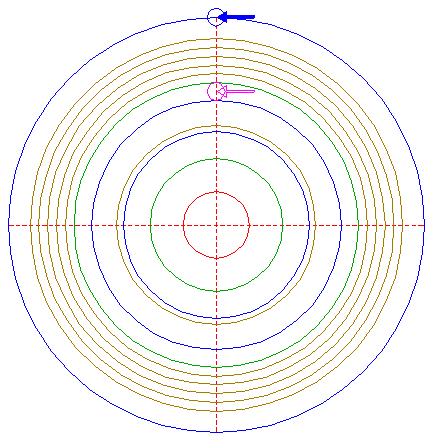

| Construct a "two-points" circle (defined by the two end-points of a centerline) between the upper intersections of circles 16 and 18 with the vertical centerline. |
| 21. |
| Copy circle 20 to the upper intersection of circle 1 and the vertical centerline. |
| 22. |
| Construct a circle concentric to circle 1, tangent to circle 21 at the lower side. |
| 23. |

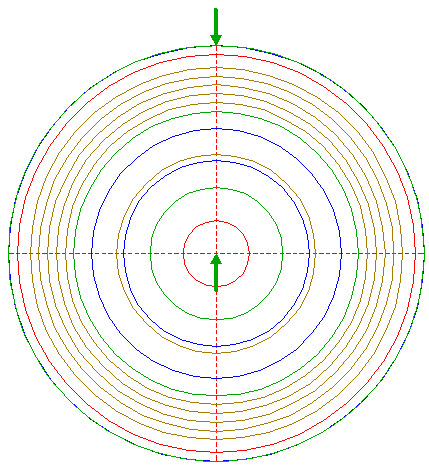

| Construct the inscribed regular 150-sided polygon of circle 1, pointing up. |
| 24. |

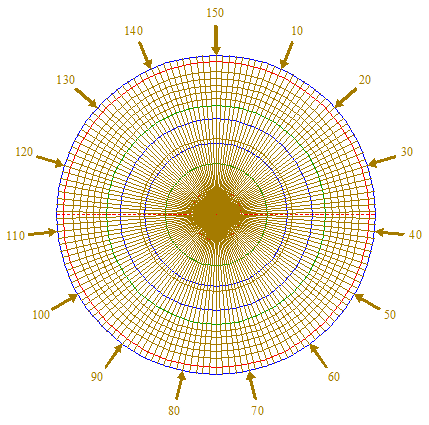

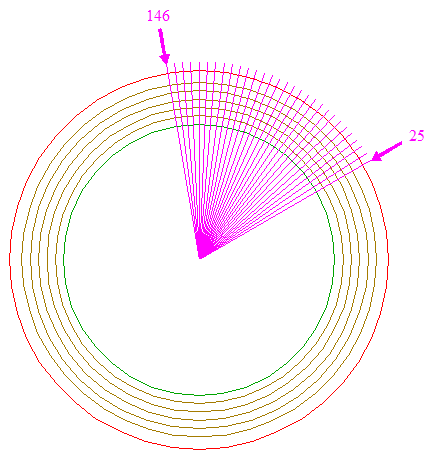

| Draw the 150 rays of polygon 23, from the center to the angular points. Number the rays 1 - 150 clockwise, starting at the one next to the top to the right. |
| 25. |

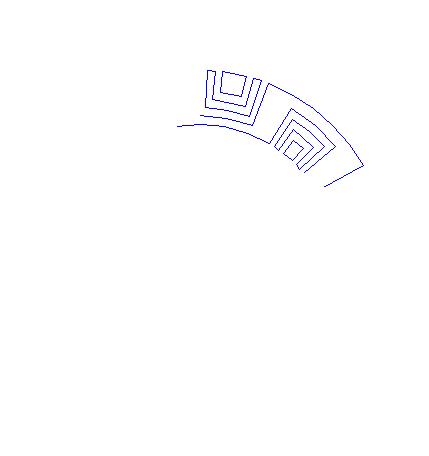

| Remove all redundant parts from circles 4, 18, 19, and 22, and from rays 24 nrs. 146 - 150, and nrs.1 - 25, such that... |
| 26. |
| ...this pattern remains. |
| 27. |

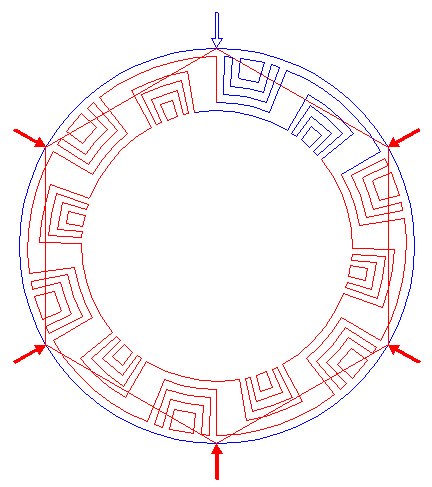

| Repeat all necessary steps to copy and rotate pattern 26 five times, with respect to the other angular points of hexagon 2, as shown. |

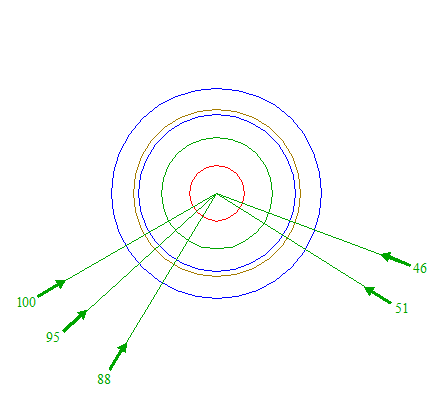

| 28. |
| Remove all redundant parts from circles 6, 9, 12, 13, and 16, and from rays 24 nrs. 46, 51, 88, 95, and 100, such that... |
| 29. |
| ...this pattern remains. |
| 30. |

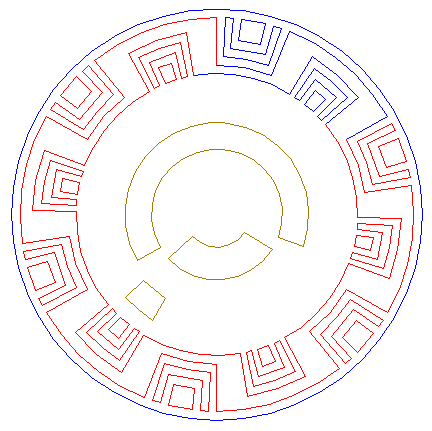

| Circle 1, and patterns 26, 27, and 29, together, make up the final reconstruction. |
| 31. |

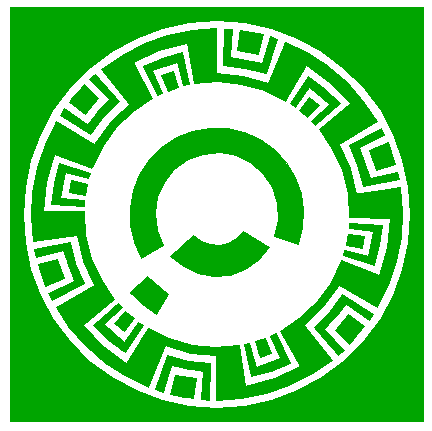

| Colour all areas corresponding to standing... |
| 32. |
| ...or to flattened crop, and finish the reconstruction of the 2021 Woodcote Lane formation. |
| 33. |
| The final result, matched with two aerial images. |
