2022 Kiteland Cottages formation
|
Reconstruction of the 2022 Kiteland Cottages formation | ||
| 1. |

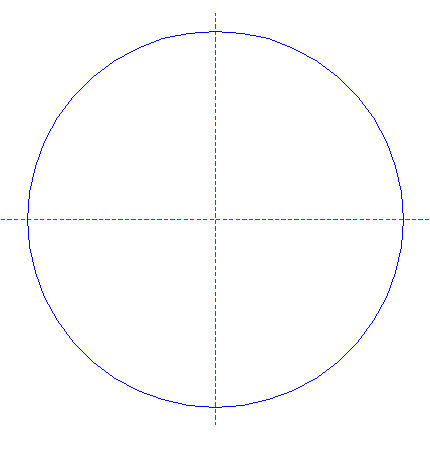

| Draw a circle. Draw and extend the horizontal and vertical centerlines. |

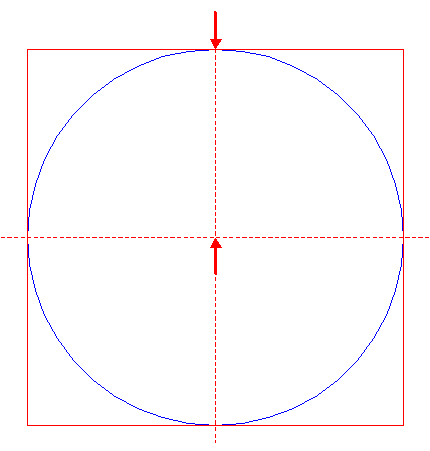

| 2. |

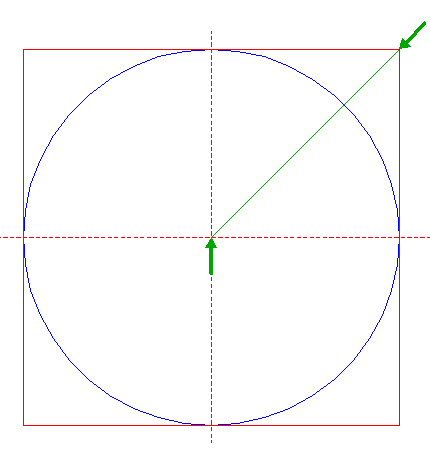

| Construct the circumscribed square of circle 1, with horizontal and vertical sides. |
| 3. |
| Draw the connecting line between the center of circle 1 and the upper righthand angular point of square 2. |
| 4. |
| Construct the inscribed square of circle 1, with one angular point on line 3. |

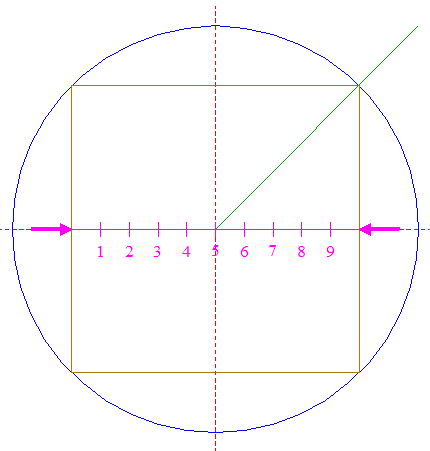

| 5. |
| Draw the connecting line between the lefthand and righthand intersections of square 4 with the horizontal centerline. Divide this line into ten equal parts, and number the nodes 1 - 9 from left to right. |
| 6. |

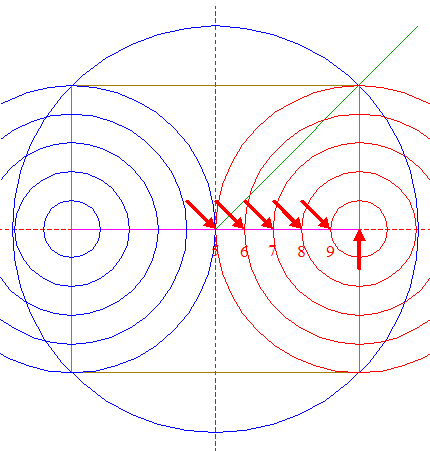

| Construct five concentric circles, centered at the lefthand intersection of square 4 and the horizontal centerline, passing through nodes 5 nrs. 1 through 5, and number these circles accordingly. |
| 7. |
| Construct five concentric circles, centered at the righthand intersection of square 4 and the horizontal centerline, passing through nodes 5 nrs. 5 through 9, and number these circles accordingly. |

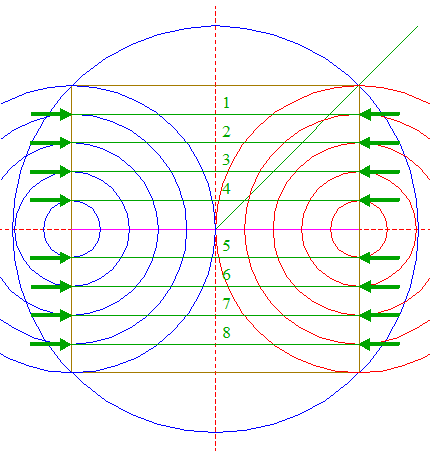

| 8. |
| Draw eight horizontal lines, tangent to circles 6 and 7 (except the outer circles) at both sides. Number these lines 1 - 8 from top to bottom. |

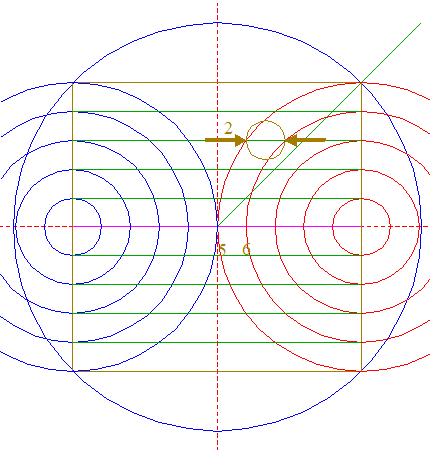

| 9. |
| Construct the "two-points" circle (defined by the two end-points of a centerline) between the intersections of line 8 nr. 2 with circles 7 nrs. 5 and 6. |

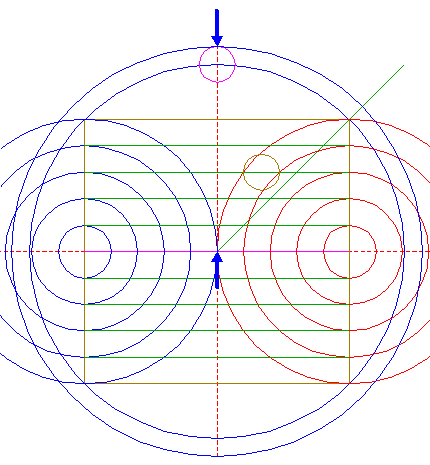

| 10. |

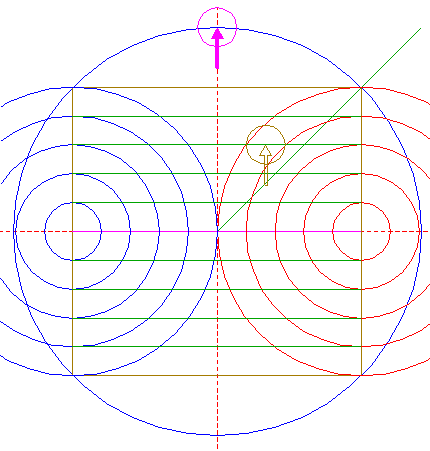

| Copy circle 9 to the upper intersection of circle 1 and the vertical centerline. |
| 11. |
| Construct a circle concentric to circle 1, tangent to circle 10 at the upper side. |

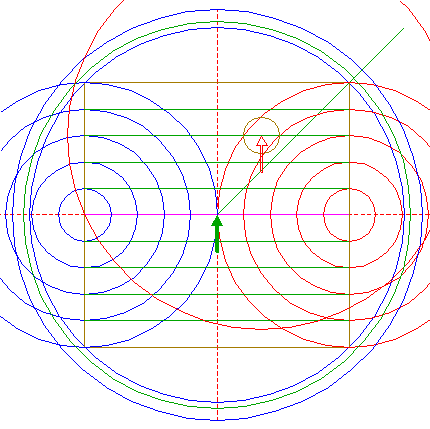

| 12. |

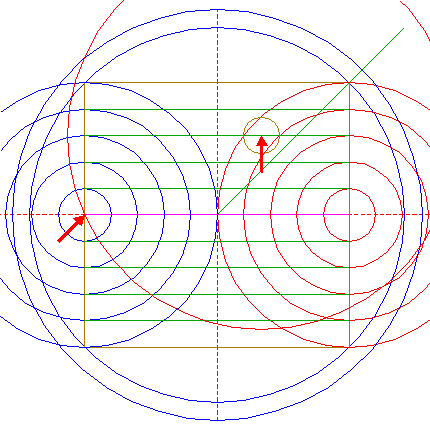

| Construct a circle concentric to circle 9, passing through the centers of circles 6. |
| 13. |
| Copy circle 12 to the center of circle 1. |
| 14. |

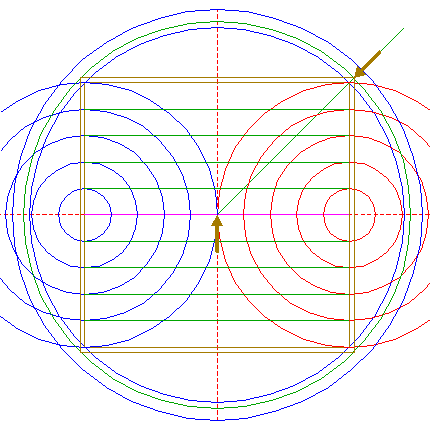

| Construct the inscribed square of circle 13, with one angular point on line 3. |
| 15. |

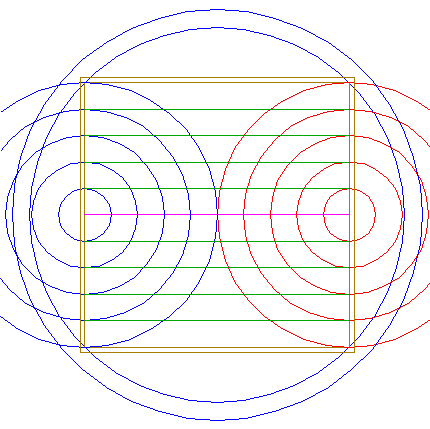

| Circles 1, 6, 7, and 11, squares 4, and 14, and lines 5, and 8, are used for the final reconstruction. |

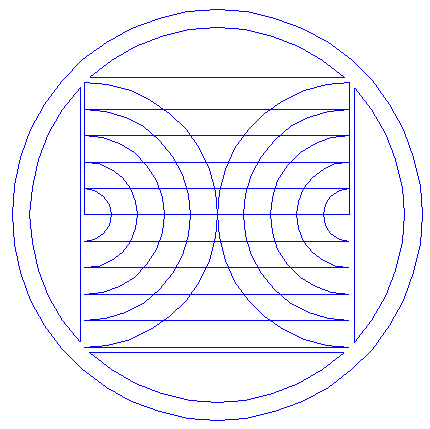

| 16. |
| Remove all parts not visible within the formation itself. |
| 17. |
| Colour all areas corresponding to standing... |
| 18. |

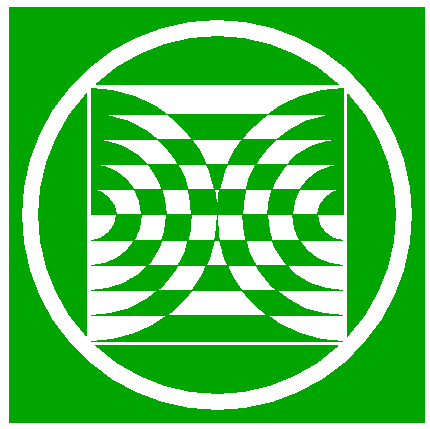

| ...or to flattened crop, and finish the reconstruction of the 2022 Kiteland Cottages formation. |
| 19. |
| The final result, matched with two aerial images. |
| Copyright © 2022, Zef Damen, The Netherlands |
|
|
||
|
|
||
