Reconstruction of the
2022 Barbury Castle formation
Phase 1 and Phase 2 |
|
| 1. |

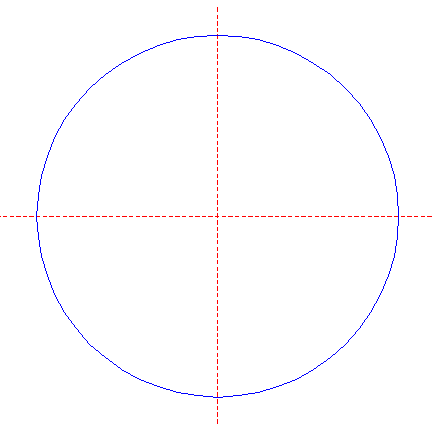

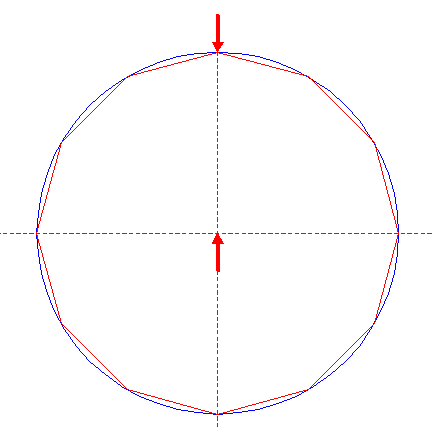

| Draw a circle. Draw and extend the horizontal and vertical centerlines.
|
|
| 2. |

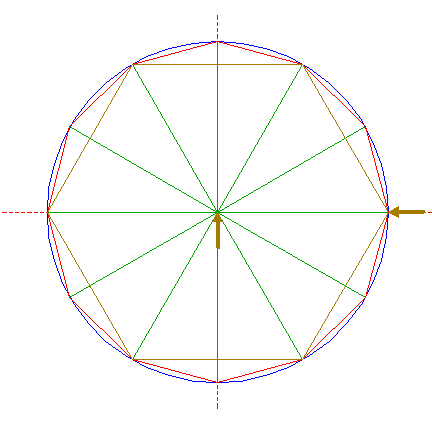

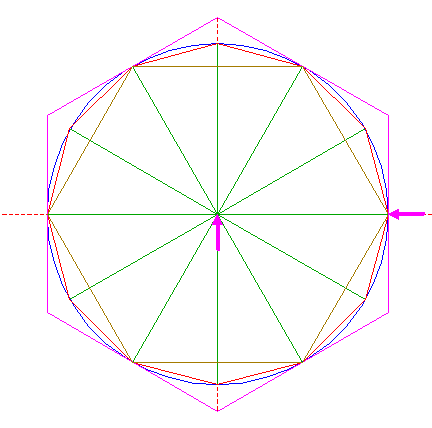

| Construct the inscribed dodecagon (regular 12-sided polygon) of circle 1, pointing up.
|
|
| 3. |
| Draw the twelve rays of dodecagon 2, from the center to the angular points. Number these rays (and angular points), clockwise, 1 - 12, starting at the top.
|
|
| 4. |
| Construct the inscribed hexagon (regular 6-sided polygon) of circle 1, pointing to the right.
|
|
| 5. |
| Construct the circumscribed hexagon of circle 1, pointing up.
|
|
| 6. |

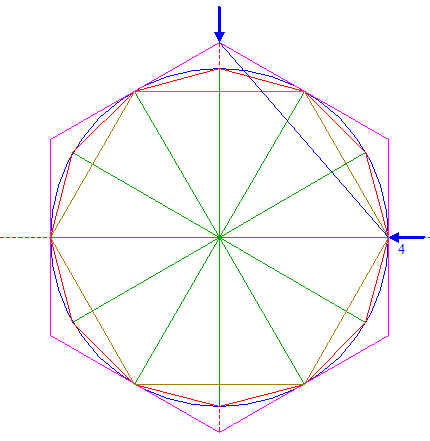

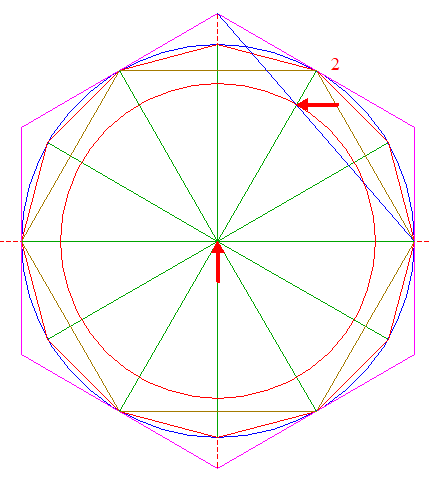

| Draw the connecting line from the top of hexagon 5 to angular point 2 nr. 4.
|
|
| 7. |

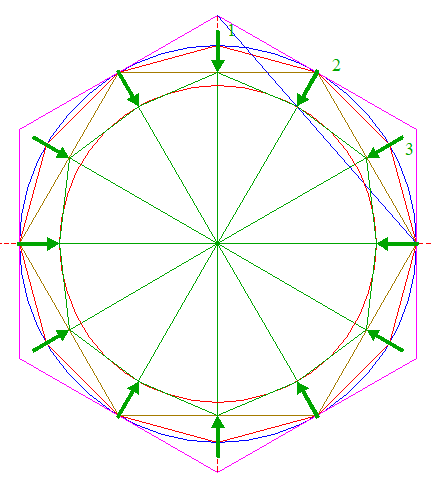

| Construct a circle concentric to circle 1, passing through the intersection of ray 3 nr. 2 and line 6.
|
|
| 8. |

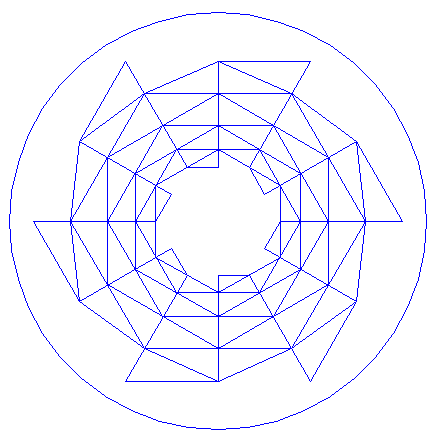

| Draw two connecting lines, from the intersection of ray 3 nr. 1 and hexagon 4 to the intersection of ray 3 nr. 2 and circle 7, and from this last point to the intersection of ray 3 nr. 3 and hexagon 4. Repeat this five times, for all other corresponding sets of intersections, as shown.
|
|
| 9. |

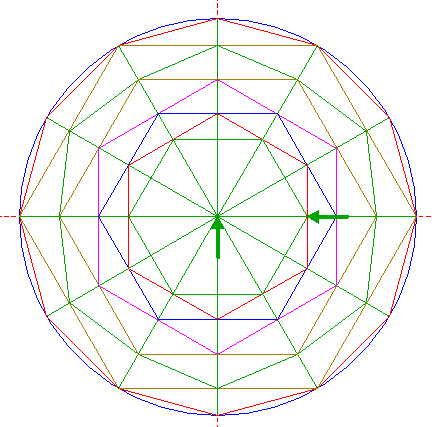

| Construct the inscribed hexagon of circle 7, pointing to the right.
|
|
| 10. |

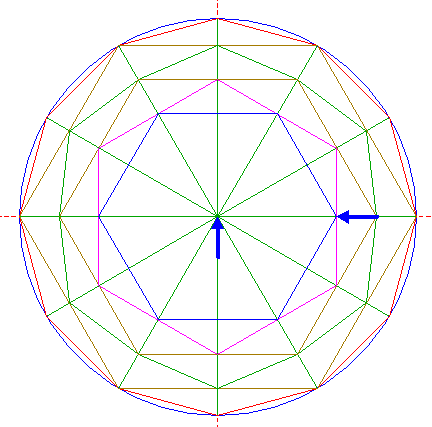

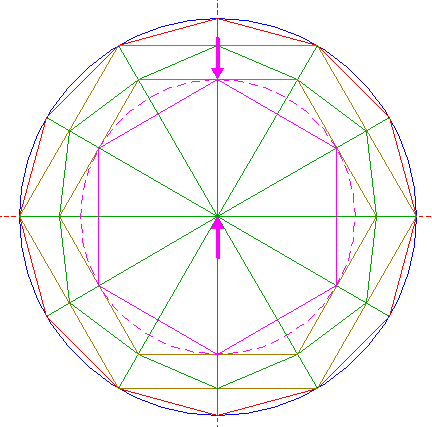

| Construct the inscribed hexagon of (the inscribed circle of) hexagon 9, pointing up.
|
|
| 11. |

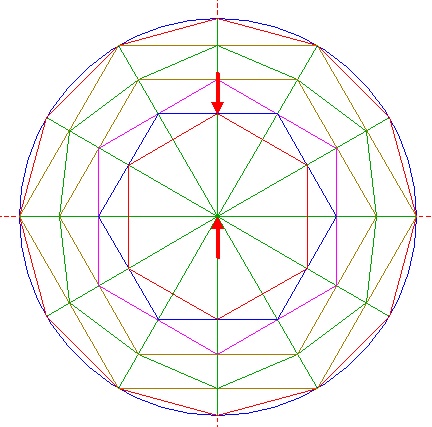

| Construct the inscribed hexagon of hexagon 10, pointing to the right.
|
|
| 12. |
| Construct the inscribed hexagon of hexagon 11, pointing up.
|
|
| 13. |
| Construct the inscribed hexagon of hexagon 12, pointing to the right.
|
|
| 14. |

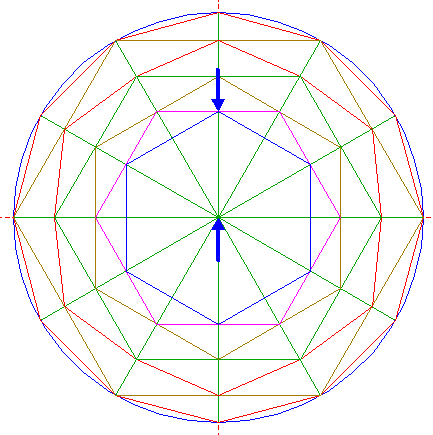

| Construct the inscribed hexagon of hexagon 13, pointing up.
|
|
| 15. |
| Construct the inscribed hexagon of hexagon 14, pointing to the right.
|
|
| 16. |

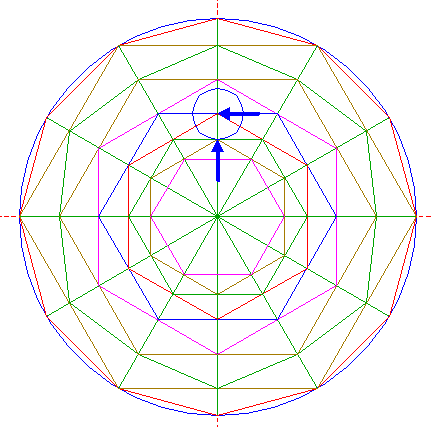

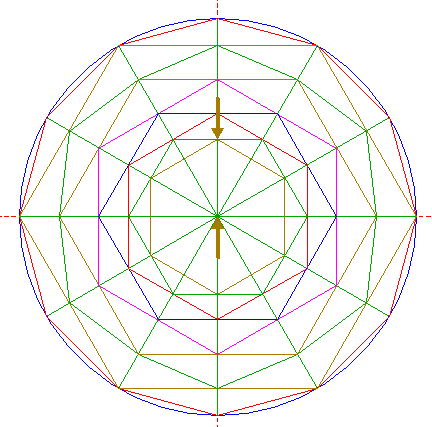

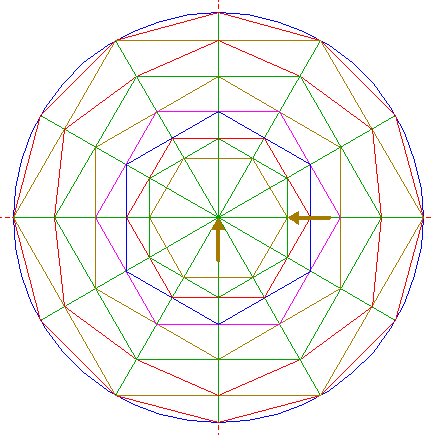

| Construct a circle centered at the upper intersection of hexagon 11 and the vertical centerline, tangent to hexagon 13 at the upper side.
|
|
| 17. |

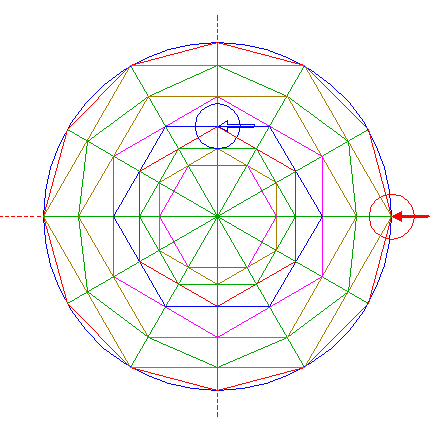

| Copy circle 16 to the righthand intersection of circle 1 and the horizontal centerline.
|
|
| 18. |
| Construct a circle concentric to circle 1, tangent to circle 17 at the righthand side.
|
|
| 19. |

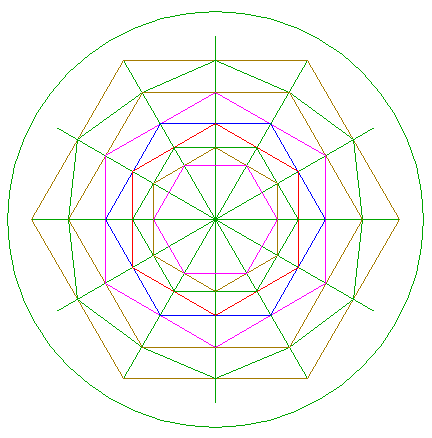

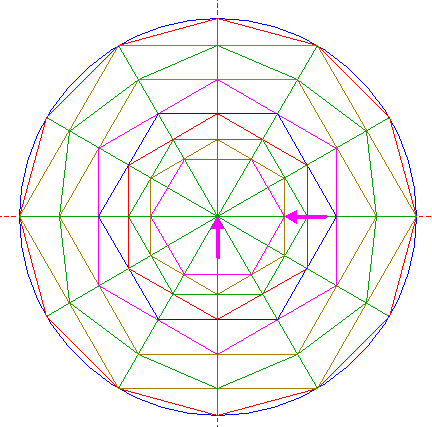

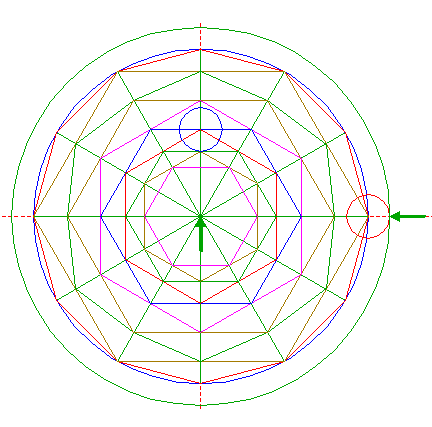

| Lines 3, and 8, hexagons 4, 9, 10, 11, 12, 13, 14, and 15, and circle 16, are used for this reconstruction.
|
|
| 20. |

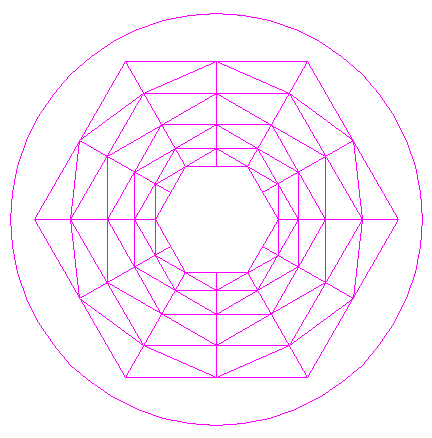

| Remove all parts not visible within the formation itself.
|
|
| 21. |

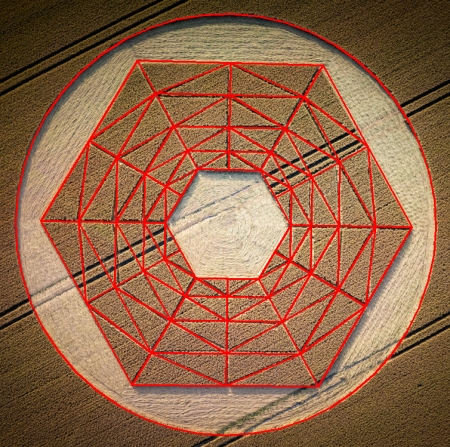

| The result, up to now, matched with the aerial image, shows a good fit.
|
|
| 22. |

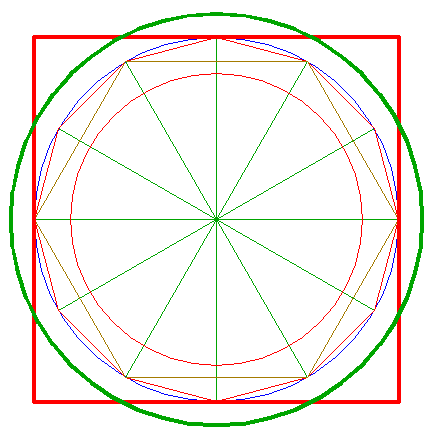

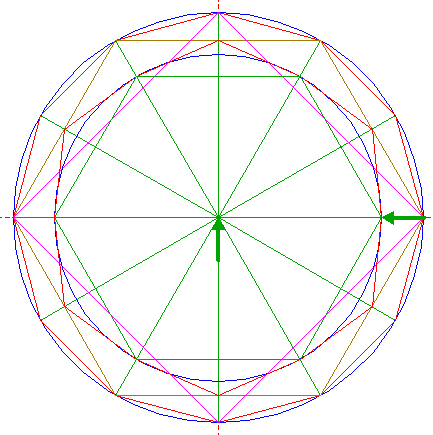

| However, the area of circle 7 is almost exactly equal to the area of the inscribed square of circle 1. The circle is only 0.53% larger.
|
|
| 23. |
| And also, the area of circle 18 is only 0.27% larger than the area of the circumscribed square of circle 1.
Both cases are equivalent to "squaring the circle"!
|
|
| 24. |
| Therefore, the reconstruction can be based on "squaring the circle". As follows.
The first four steps are the same as steps 1 to 4 above.

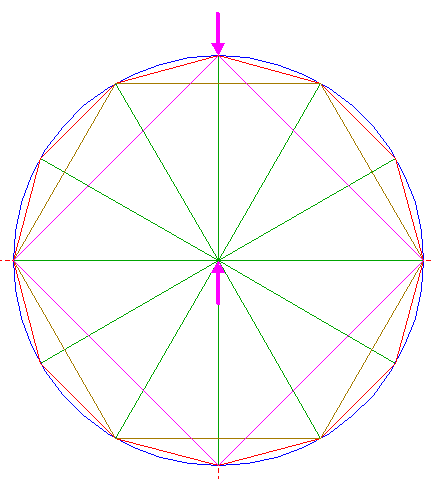

Construct the inscribed square of circle 1, pointing up.
|
|
| 25. |

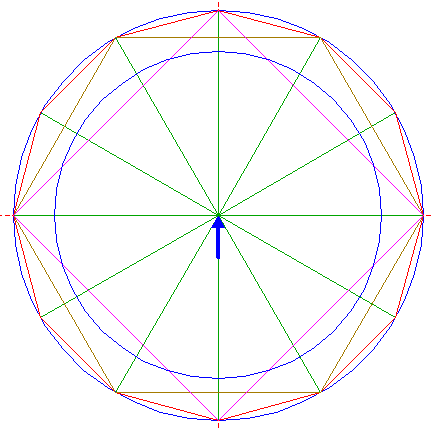

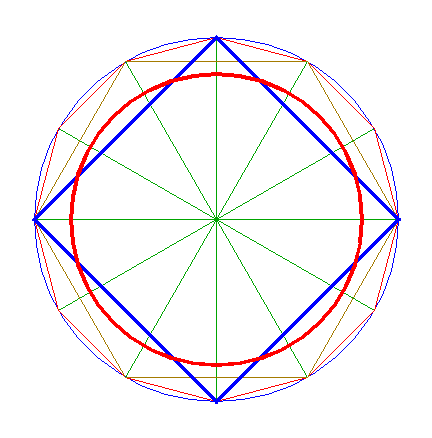

| Construct a circle concentric to circle 1, with an area equal to that of square 24.
Hint: the diameter of the circle is approximately equal to 112.84% of (1.12837926 times) one side of the square.
|
|
| 26. |

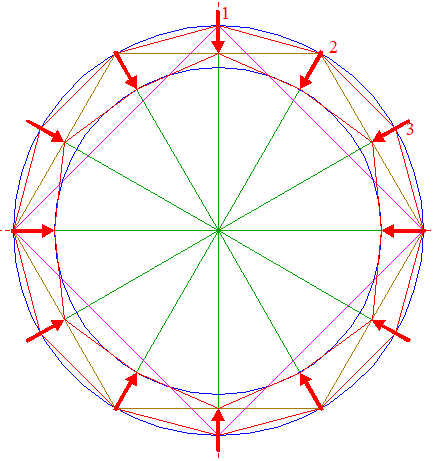

| Draw two connecting lines, from the intersection of ray 3 nr. 1 and hexagon 4 to the intersection of ray 3 nr. 2 and circle 25, and from this last point to the intersection of ray 3 nr. 3 and hexagon 4. Repeat this five times, for all other corresponding sets of intersections, as shown.
|
|
| 27. |

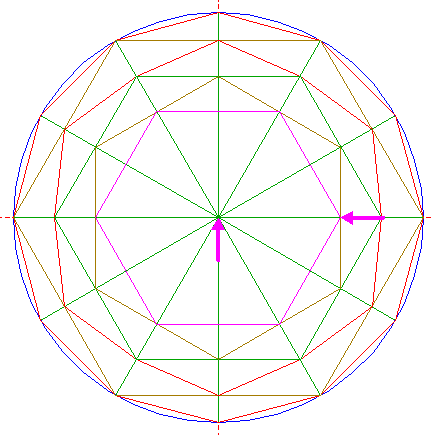

| Construct the inscribed hexagon of circle 25, pointing to the right.
|
|
| 28. |

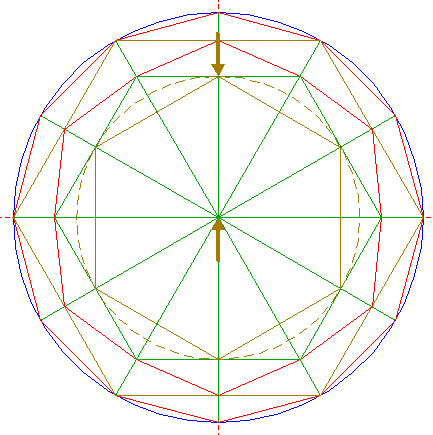

| Construct the inscribed hexagon of (the inscribed circle of) hexagon 27, pointing up.
|
|
| 29. |
| Construct the inscribed hexagon of hexagon 28, pointing to the right.
|
|
| 30. |
| Construct the inscribed hexagon of hexagon 29, pointing up.
|
|
| 31. |

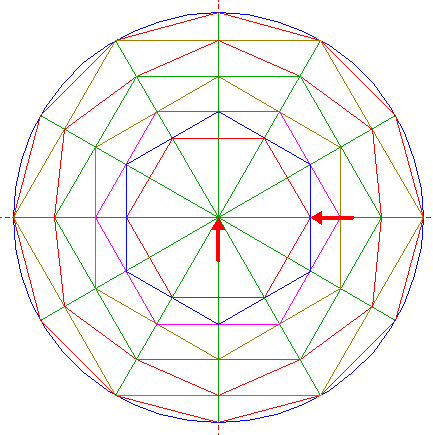

| Construct the inscribed hexagon of hexagon 30, pointing to the right.
|
|
| 32. |

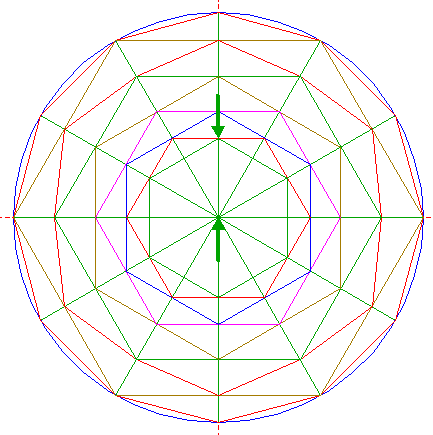

| Construct the inscribed hexagon of hexagon 31, pointing up.
|
|
| 33. |
| Construct the inscribed hexagon of hexagon 32, pointing to the right.
|
|
| 34. |

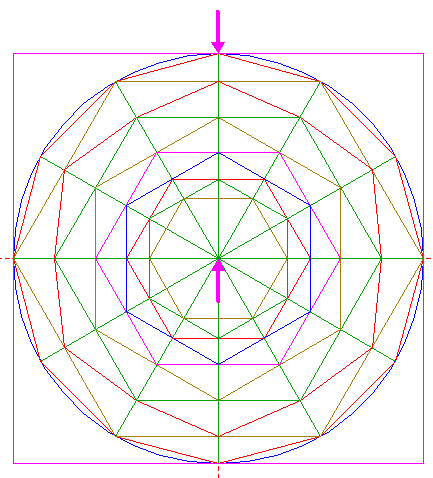

| Construct the circumscribed square of circle 1, with sides horizontal and vertical.
|
|
| 35. |

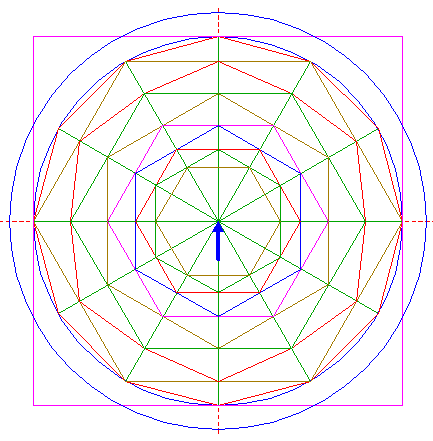

| Construct a circle concentric to circle 1, with an area equal to that of square 34.
|
|
| 36. |

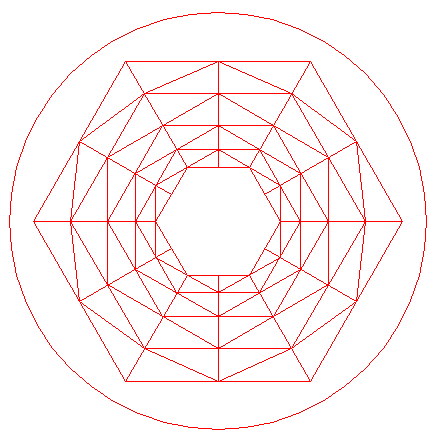

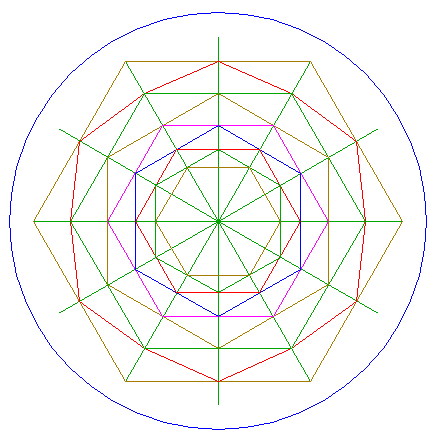

| Lines 3, and 26, hexagons 4, 27, 28, 29, 30, 31, 32, and 33, and circle 35, are used for the final reconstruction.
|
|
| 37. |
| PHASE 1
Remove all parts not visible within the formation itself.
|
|
| 38. |
| Colour all areas corresponding to standing...
|
|

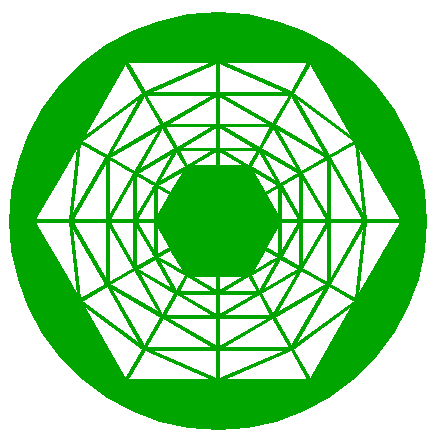

| 39. |
| ...or to flattened crop, and finish the reconstruction of the first phase of the 2022 Barbury Castle formation.
|
|
| 40. |

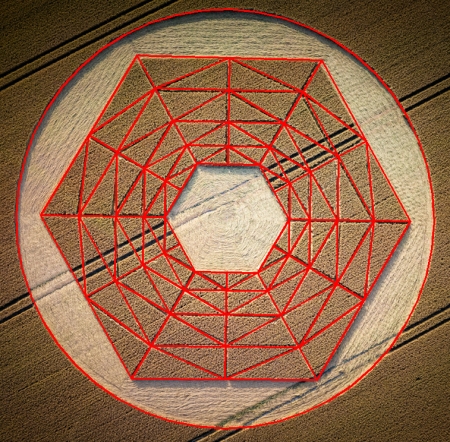

| The result, matched with the aerial image of the first phase.
|
|
| 41. |
| PHASE 2
Remove all parts not visible within the formation itself.
|
|
| 42. |

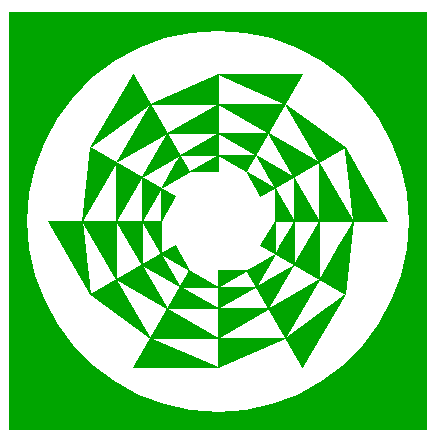

| Colour all areas corresponding to standing...
|
|
| 43. |
| ...or to flattened crop, and finish the reconstruction of the 2022 Barbury Castle formation.
|
|
| 44. |

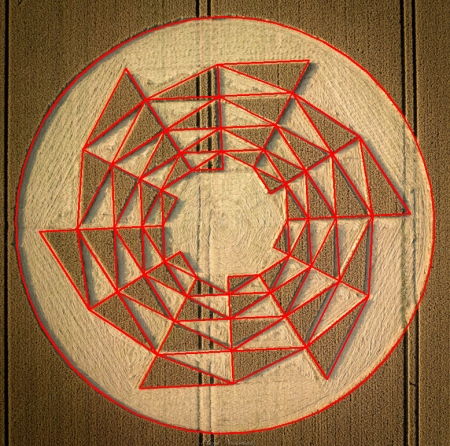

| The final result, matched with the aerial image.
|
