Reconstruction of the
2023 Kitt's Lane formation |
|
| 1. |

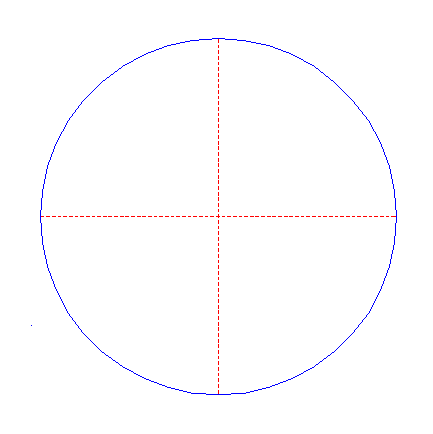

| Draw a circle. Draw the horizontal and vertical centerlines.
|
|

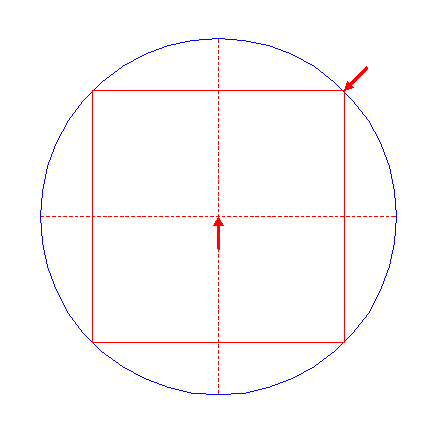

| 2. |
| Construct the inscribed square of circle 1, with sides horizontally and vertically.
|
|

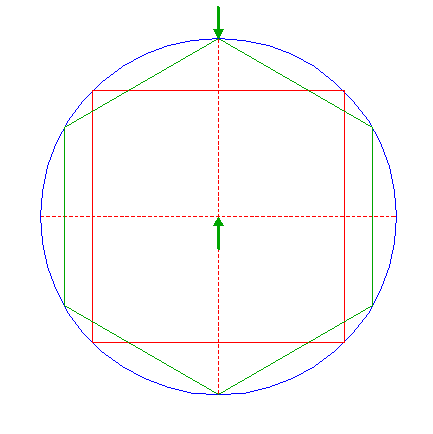

| 3. |
| Construct the inscribed hexagon (regular 6-sided polygon) of circle 1, pointing up.
|
|

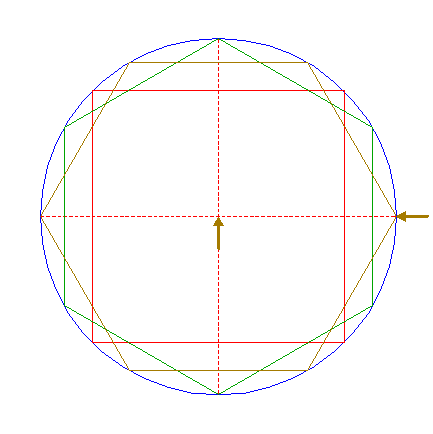

| 4. |
| Construct the inscribed hexagon of circle 1, pointing to the right.
|
|

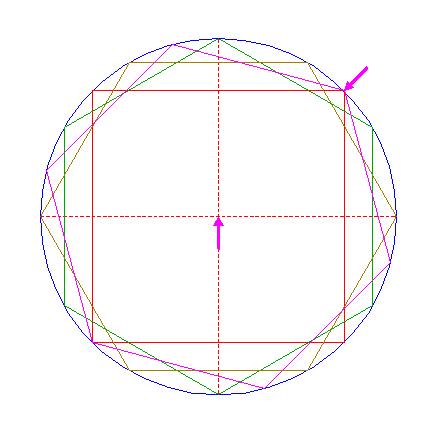

| 5. |
| Construct the inscribed hexagon of circle 1, with one angular point on the upper righthand angular point of square 2.
|
|

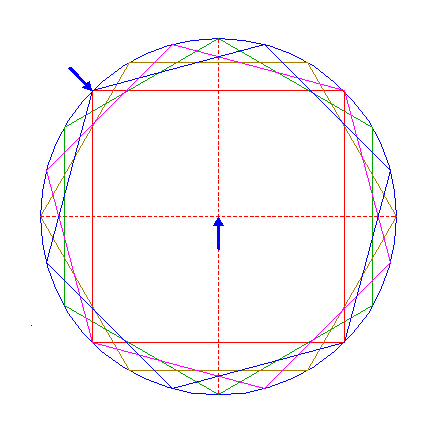

| 6. |
| Construct the inscribed hexagon of circle 1, with one angular point on the upper lefthand angular point of square 2.
|
|
| 7. |

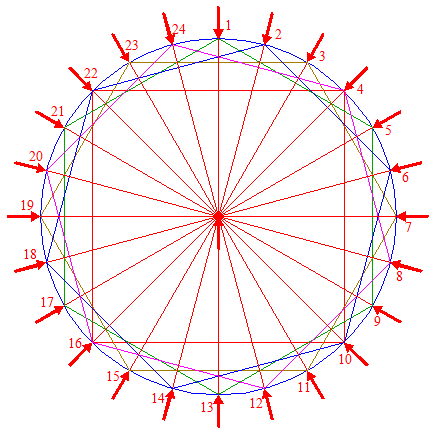

| Draw the twenty-four rays from the center of circle 1 to all angular points of hexagons 3, 4, 5, and 6. Number the rays 1 - 24, clockwise, starting at the top.
|
|

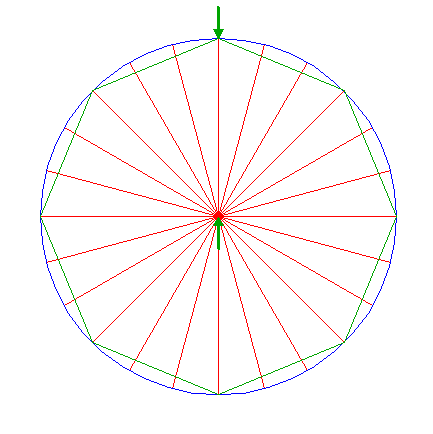

| 8. |
| Construct the inscribed octagon (regular 8-sided polygon) of circle 1, pointing up.
|
|
| 9. |

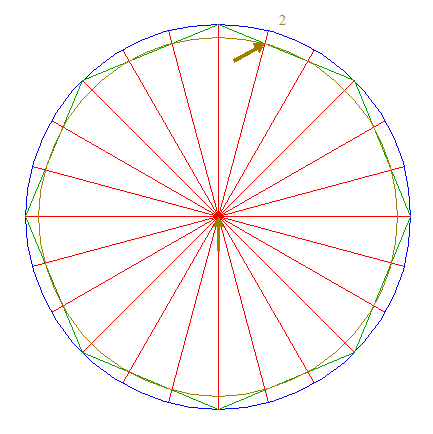

| Construct a circle concentric to circle 1, passing through the intersection of octagon 8 and ray 7 nr. 2.
|
|

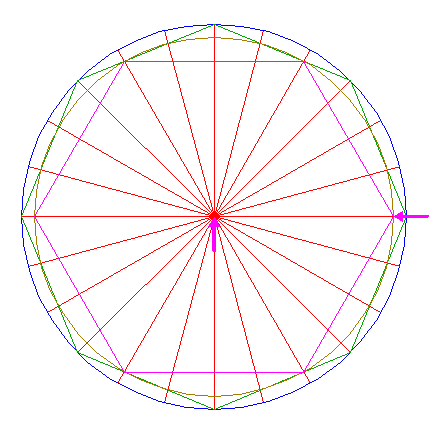

| 10. |
| Construct the inscribed hexagon of circle 9, pointing to the right.
|
|

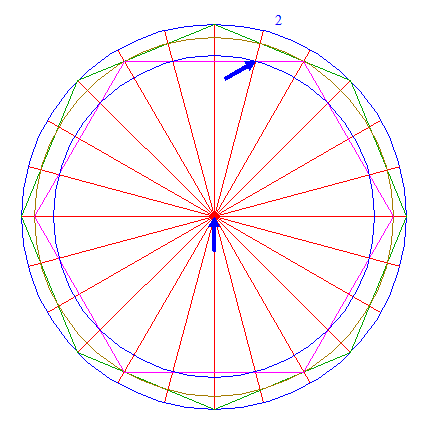

| 11. |
| Construct a circle concentric to circle 1, passing through the intersection of hexagon 10 and ray 7 nr. 2.
|
|

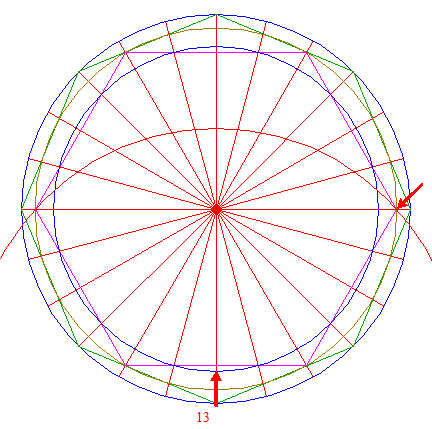

| 12. |
| Construct a circle centered at the intersection of circle 11 and ray 7 nr. 13, passing throuh the righthand angular point of hexagon 10.
|
|
| 13. |

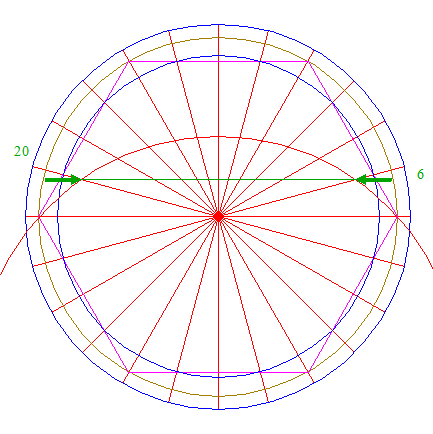

| Draw the connecting line between the intersections of circle 12 with rays 7 nrs. 6 and 20.
|
|
| 14. |

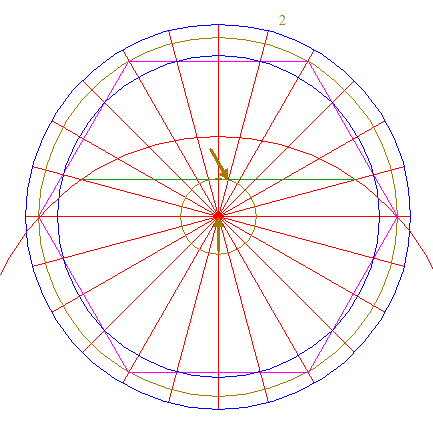

| Construct a circle concentric to circle 1, passing through the intersection of line 13 and ray 7 nr. 2.
|
|
| 15. |

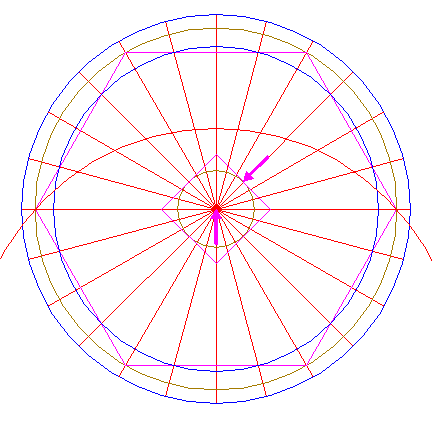

| Construct the circumscribed square of circle 14, pointing up.
|
|
| 16. |

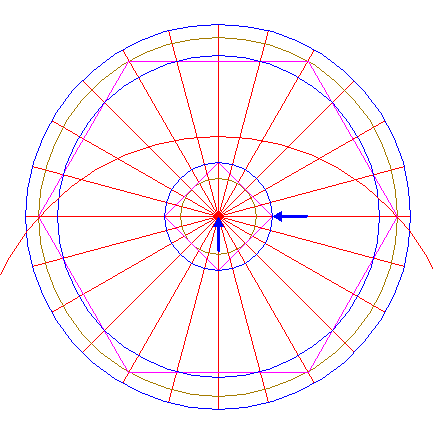

| Construct the circumscribed circle of square 15.
|
|
| 17. |

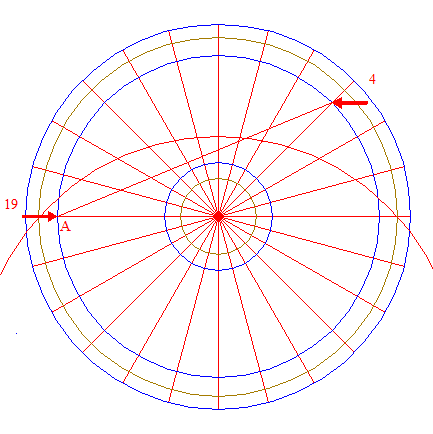

| Find the intersection of circle 11 and ray 7 nr. 19, and call this A. Draw the connecting line between A and the intersection of circle 11 and ray 7 nr. 4.
|
|
| 18. |

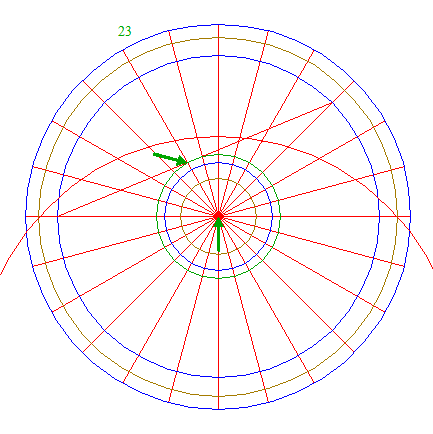

| Construct a circle concentric to circle 1, passing through the intersection of line 17 and ray 7 nr. 23.
|
|

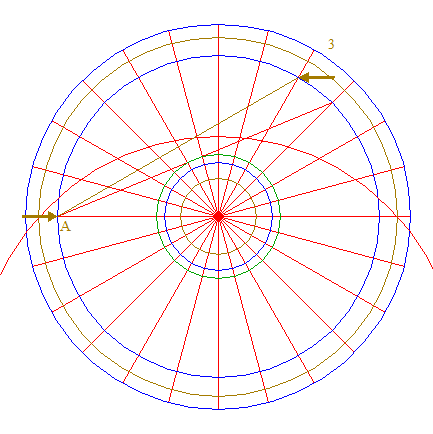

| 19. |
| Draw the connecting line between A and the intersection of circle 11 and ray 7 nr. 3.
|
|

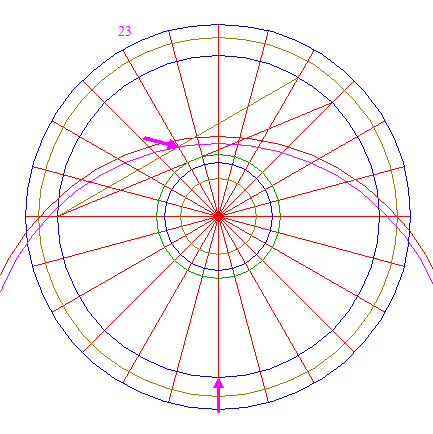

| 20. |
| Construct a circle concentric to circle 12, passing through the intersection of line 19 and ray 7 nr. 23.
|
|
| 21. |

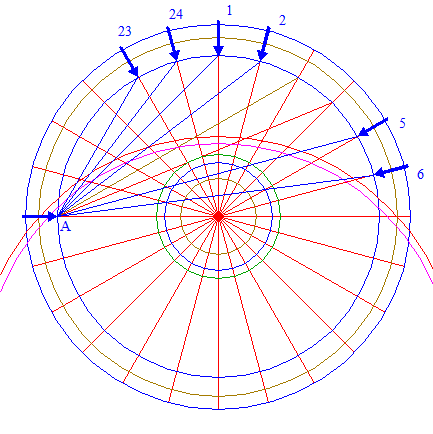

| Draw the six connecting lines between A and the intersections of circle 11 with rays 7 nrs. 1, 2, 5, 6, 23, and 24.
|
|
| 22. |

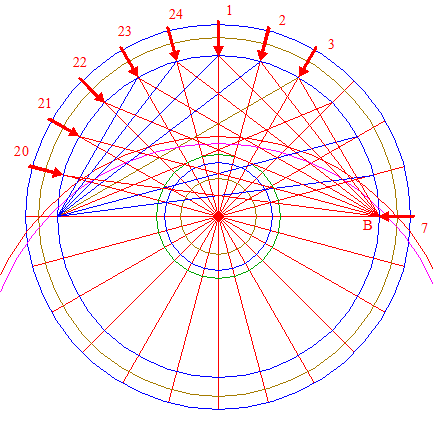

| Find the intersection of circle 11 and ray 7 nr. 7, and call this B. Draw the eight connecting lines between B and the intersections of circle 11 with rays 7 nrs. 1, 2, 3, 20, 21, 22, 23, and 24.
|
|

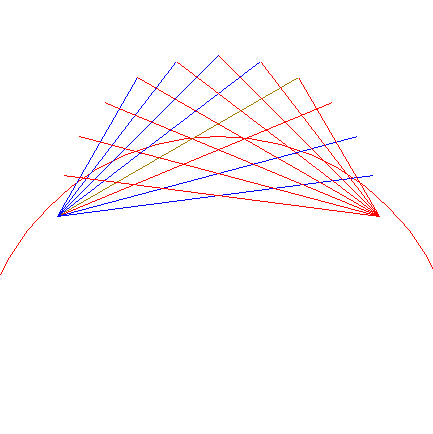

| 23. |
| Remove all redundant parts from circle 12, and lines 17, 19, 21, and 22, such that...
|
|

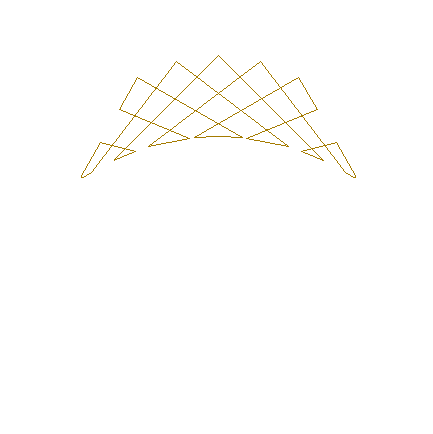

| 24. |
| ...this pattern remains.
|
|

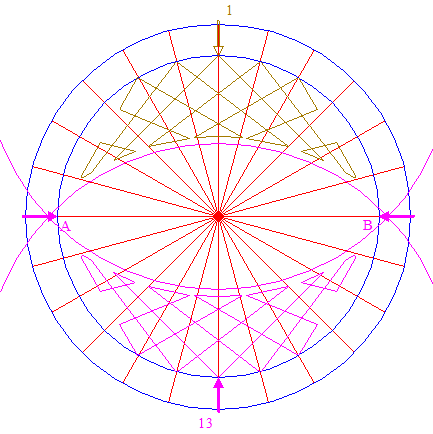

| 25. |
| Copy circle 20, and pattern 24, while mirroring with respect to line AB.
|
|
| 26. |

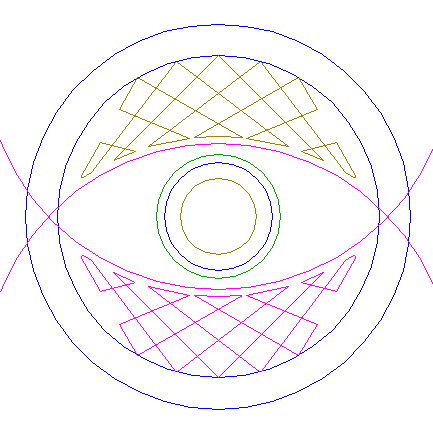

| Circles 1, 11, 14, 16, 18, and 20, and patterns 24 and 25, are used for the final reconstruction.
|
|
| 27. |

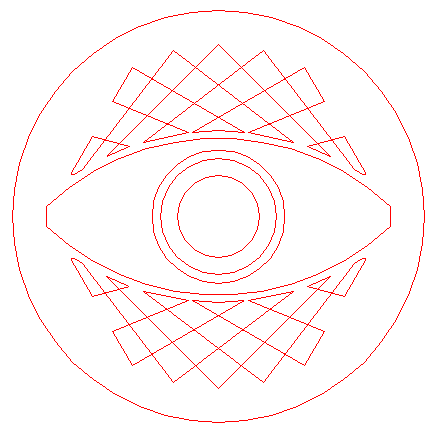

| Remove all parts not visible within the formation itself.
|
|

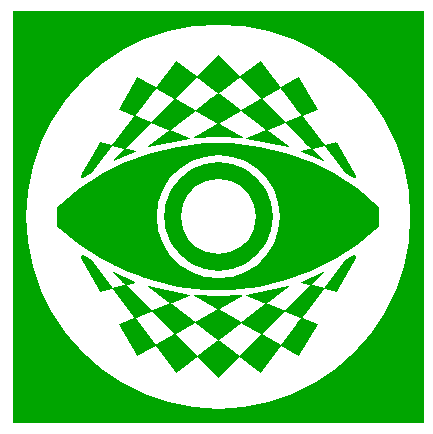

| 28. |
| Colour all areas corresponding to standing...
|
|
| 29. |
| ...or to flattened crop, and finish the reconstruction of the 2023 Kitt's Lane formation.
|
|

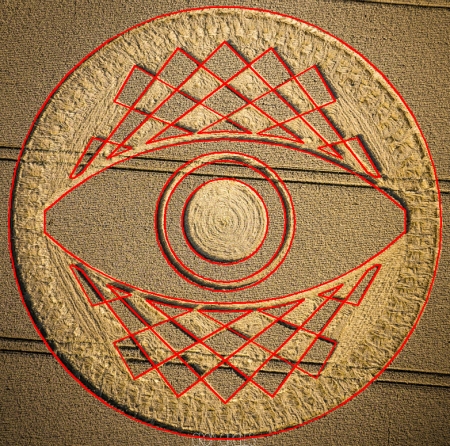

| 30. |
| The final result, matched with the aerial image.
|
