2025 Ware Farm Manor formation
...this pattern remains.
|
Reconstruction of the 2025 Ware Farm Manor formation | ||
| 1. |

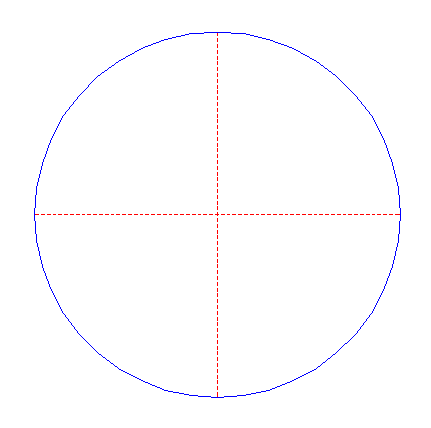

| Draw a circle. Draw the horizontal and vertical centerlines. |
| 2. |

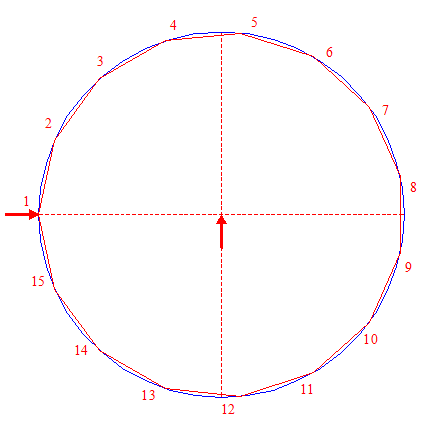

| Construct the inscribed regular 15-sided polygon of circle 1, pointing to the left. Number the angular points clockwise 1 through 15, starting with the lefthand one. |
| 3. |

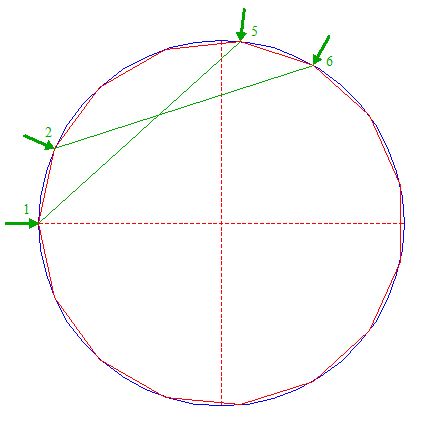

| Draw two connecting lines, between angular points 2 nrs. 1 and 5, and nrs. 2 and 6. |
| 4. |

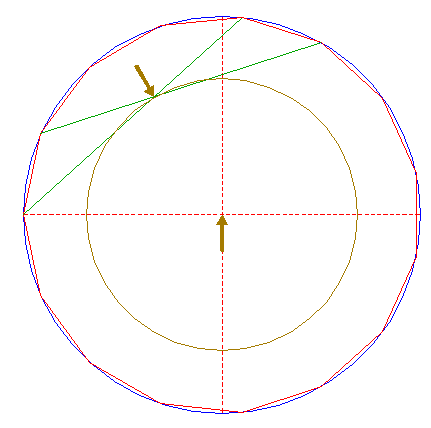

| Construct a circle concentric to circle 1, passing through the mutual intersection of lines 3. |
| 5. |

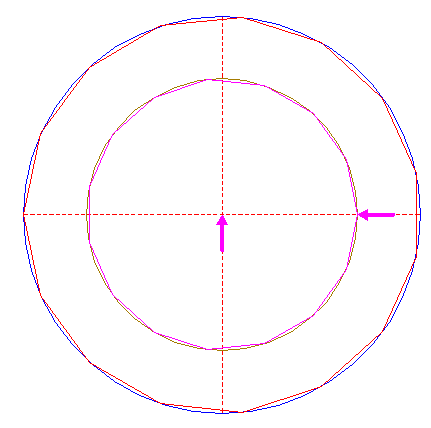

| Construct the inscribed regular 15-sided polygon of circle 4, pointing to the right. |
| 6. |

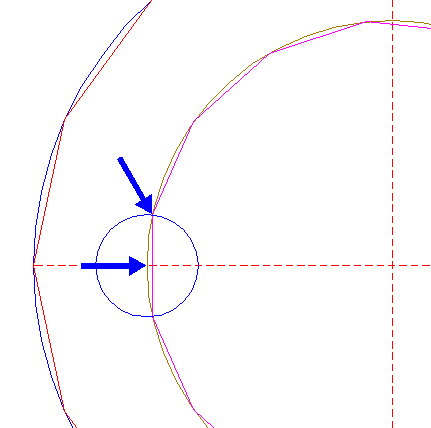

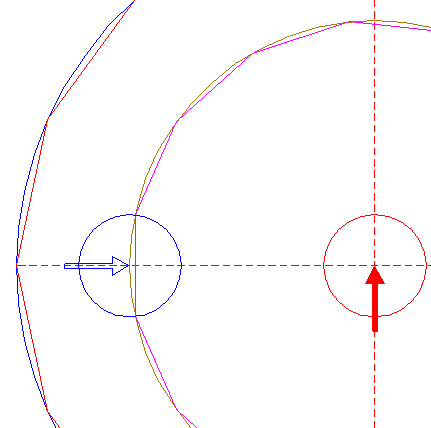

| Construct a circle centered at the lefthand intersection of circle 4 and the horizontal centerline, passing through the adjacent angular point of polygon 5 just above the horizontal centerline. |
| 7. |
| Copy circle 6 to the center of circle 1. |
| 8. |

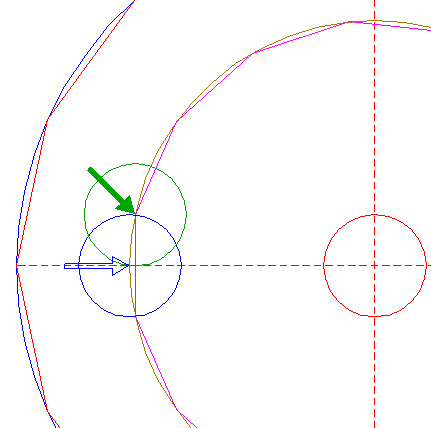

| Copy circle 6 to its own upper intersection with circle 4. |
| 9. |

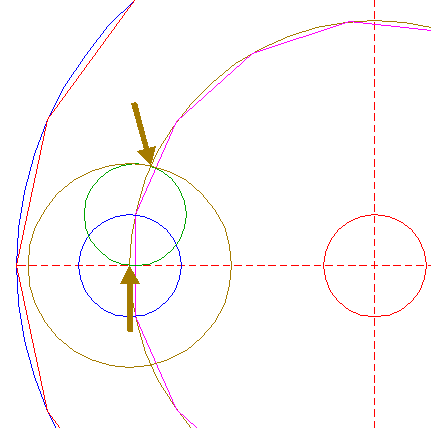

| Construct a circle concentric to circle 6, passing through the upper intersection of circles 4 and 8. |
| 10. |

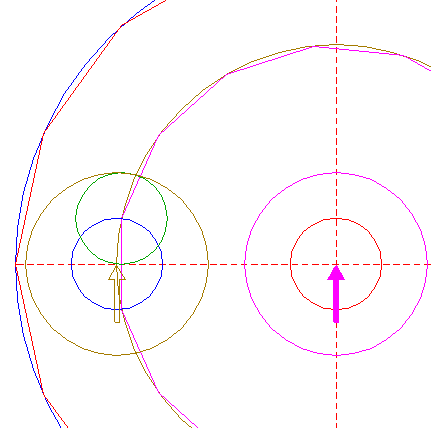

| Copy circle 9 to the center of circle 1. |
| 11. |

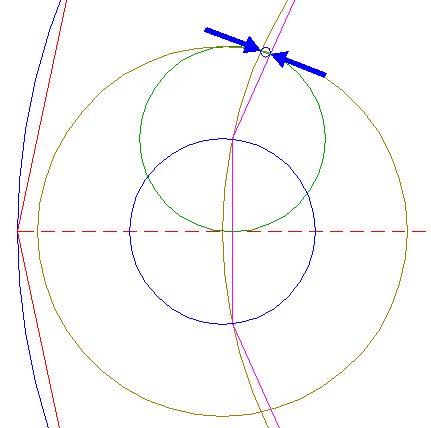

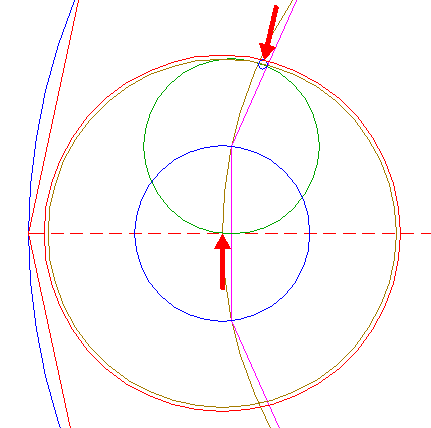

| Construct the (small) "two-points" circle (defined by the two end-points of a centerline) between the upper intersections of circle 8 with circle 4 and polygon 5. |
| 12. |
| Construct a circle concentric to circle 6, tangent to circle 11 at the upper side. |
| 13. |

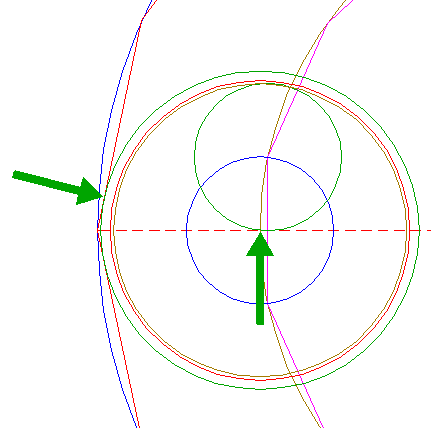

| Construct a circle concentric to circle 6, tangent to the nearby sides of polygon 2. |
| 14. |

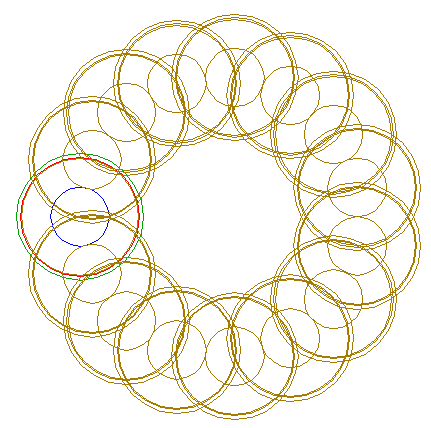

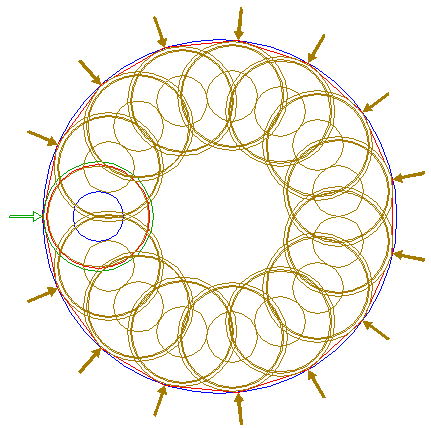

| Copy and rotate circles 6, 9, 12, and 13, fourteen times, with respect to the other angular points of polygon 2, as shown. |
| 15. |

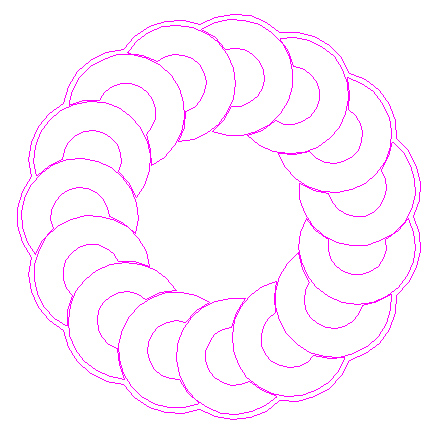

| Remove all redundant parts from circles 6, 9, 12, 13, and 14, such that... ...this pattern remains. |
|
| ||
| 16. |

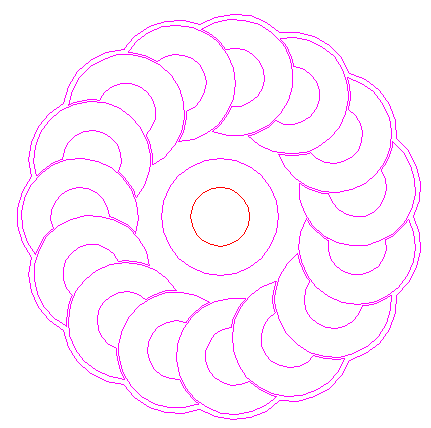

| Circles 7, and 10, and pattern 15, together, make up the final reconstruction. |
| 17. |

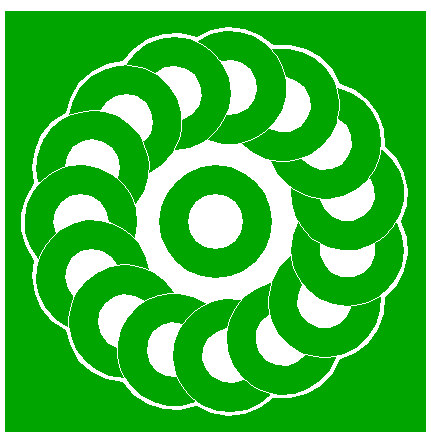

| Colour all areas corresponding to standing... |
| 18. |
| ...or to flattened crop, and finish the reconstruction of the 2025 Ware Farm Manor formation. |
| 19. |

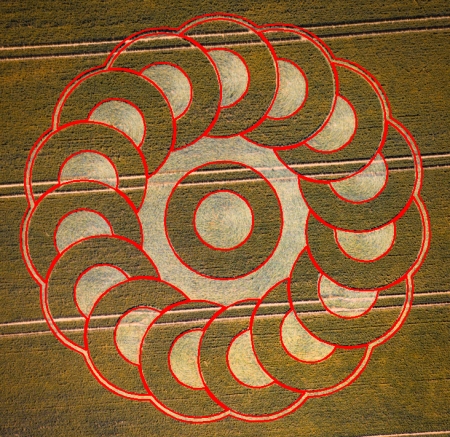

| The final result, matched with the aerial image. |
| Copyright © 2025, Zef Damen, The Netherlands |
|
|
||
|
|
||
